Vehicle Exploded View - APRILIA SR 50 Air 1997-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

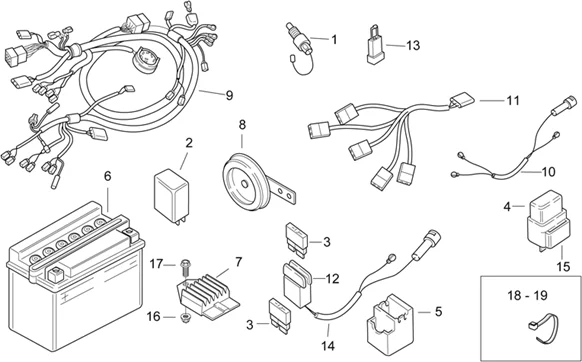

Chassis : 28.30 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/573/SR_50_Air_1997-2001_28.30.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/9/img/67189.jpg)
1 |
STOP LIGHT SWITCH "PIAGGIO GENUINE PART" UTILISABLE SUR L'ENSEMBLE DE LA GAMME PIAGGIO/GILERA/APRILIA/VESPA -580953- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/3/img/71563.jpg)
2 |
FLASHER UNIT "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER + MAXISCOOTER APRILIA + MOTO 125 CC -AP8124235- More informationQuantity required : 1 |
||||||
3 |
CM225607 - FUSIBLE More informationQuantity required : 2 |
||||||
|
4 |
AP8224057 - RELAIS DEMARRAGE; More informationQuantity required : 1 |
||||||
|
5 |
AP8220342 - CAOUTCHOUC P-FUSIBLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/0/img/65970.jpg)
6 |
234390 - BATTERIE 12V/4 AH YUASA YB4L-B More informationQuantity required : 1 |
||||||
|
7 |
AP8212799 - REGULATEUR DE TENSION; More informationQuantity required : 1 |
||||||
|
8 |
58237R - HORN 12 V-CC More informationQuantity required : 1 |
||||||
|
10 |
AP8212670 - CABLAGE DEMARREUR More informationQuantity required : 1 |
||||||
|
11 |
AP8224147 - CABLAGE COMMANDES GUIDON; More informationQuantity required : 1 |
||||||
|
11 |
AP8224145 - CABLAGE COMMANDES GUIDON; More informationQuantity required : 1 |
||||||
|
12 |
AP8120754 - CAOUTCHOUC P-FUSIBLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/5/4/img/56254.jpg)
13 |
DIODE "PIAGGIO GENUINE PART" 50 APRILIA 1998>2005, 650 PEGASO, 1000 CAPONORD, FUTURA -AP8212382- More informationQuantity required : 1 |
||||||
|
14 |
AP8212738 - CABLAGE FUSIBLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/9/img/72289.jpg)
15 |
AP8220546 - CAOUTCHOUC SUPPORT RELAIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
16 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
17 |
AP8152280 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/5/img/71395.JPG)
18 |
AP8120422 - COLLIER, NOIR More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
19 |
AP8120416 - COLLIER, NOIR More informationQuantity required : 2 |
