Vehicle Exploded View - APRILIA SR 50 Air 1997-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

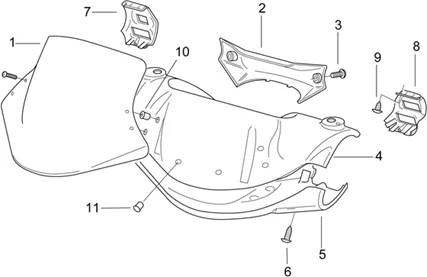

Chassis : 28.06 CARROSSERIE AV. I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/573/SR_50_Air_1997-2001_28.06.PNG)
1 |
AP8238345 - VITRE COUPOLE BLEUE; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8249698 - VITRE COUPOLE BLEUE; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8248147 - PLAQ.GUID.GRIS MET.; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8249879 - PLAQUE GUIDON NOIR MET. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
3 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302- More informationQuantity required : 2 |
|||||||||
|
4 |
AP8258238 - SUPP T.B BL.; More informationQuantity required : 1 |
|||||||||
|
4 |
AP8249711 - SUPPORT EL.BLEU; More informationQuantity required : 1 |
|||||||||
|
4 |
AP8249554 - SUPPORT HOT RED; More informationQuantity required : 1 |
|||||||||
|
4 |
AP8249543 - SUPPORT NOIR EBENE; More informationQuantity required : 1 |
|||||||||
|
4 |
AP8238454 - SUPPORT PEINT ROSSA More informationQuantity required : 1 |
|||||||||
|
5 |
AP8238344 - BASE T?TE, GRISE; More informationQuantity required : 1 |
|||||||||
|
5 |
AP8248653 - BASE T?TE N.METAL More informationQuantity required : 1 |
|||||||||
|
5 |
AP8248800 - BASE T?TE BL.; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
6 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/8/2/5/9/img/58259.jpg)
7 |
HALF SHELL FOR RIGHT SWITCH "PIAGGIO GENUINE PART" APRILIA 50 SR H2O -AP8238748- More informationQuantity required : 1 |
|||||||||
|
8 |
HALF SHELL FOR LEFT SWITCH "PIAGGIO GENUINE PART" APRILIA 50 SR H2O -AP8238749- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/8/img/71878.jpg)
9 |
AP8150420 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
10 |
NUT - WITH RUBBER INSERT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -AP8120531- More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/6/img/72286.JPG)
11 |
AP8220488 - CAOUTCHOUC CHAMPIGNON; More informationQuantity required : 2 |
|||||||||
