Vehicle Exploded View - APRILIA SR 50 Air 1997-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

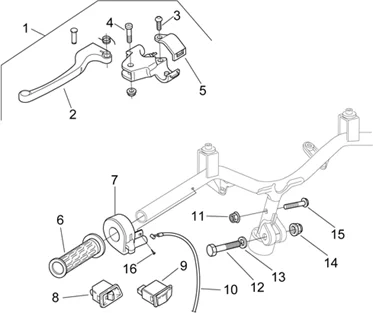

Chassis : 28.19 COMMANDES I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/573/SR_50_Air_1997-2001_28.19.PNG)
1 |
AP8218136 - COMMANDE FREIN ARRIERE GCHE; More informationQuantity required : 1 |
||||||
|
1 |
AP8218236 - LEVIER FREIN ARRIERE; More informationQuantity required : 1 |
||||||
|
2 |
AP8218153 - LEVIER FREIN ARRIERE NU; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/6/4/8/img/56648.jpg)
2 |
BRAKE LEVER "PIAGGIO GENUINE PART" APRILIA 50 SR 1996>1999 AR -AP8218274- More informationQuantity required : 1 |
||||||
|
3 |
AP8118472 - VIS; More informationQuantity required : 1 |
||||||
|
5 |
AP8218154 - CAVALIER LEVIER FREIN; More informationQuantity required : 1 |
||||||
|
6 |
GRIPS(PAIR) "PIAGGIO GENUINE PART" APRILIA 50 RALLYE, AMICO, GULLIVER, SR 1996> -AP8218275- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/8/img/72188.jpg)
7 |
CHOKE CONTROL "PIAGGIO GENUINE PART" APRILIA 50 RALLY, RX, SX, GULLIVER, AMICO, SR -AP8212529- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/1/6/img/56316.jpg)
8 |
TURN SIGNAL SWITCH "PIAGGIO GENUINE PART" COMMON TO THE 50CC APRILIA SCOOTER RANGE 1995>2009 -AP8215767- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/4/9/img/47449.jpg)
9 |
HORN SWITCH "PIAGGIO GENUINE PART" COMMON TO THE 50CC APRILIA SCOOTER RANGE 1995>2009 -AP8124209- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/5/5/3/img/56553.jpg)
10 |
CHOKE TRANSMISSION CABLE "PIAGGIO GENUINE PART" APRILIA 50 RALLY, GULLIVER, SR -AP8214159- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
11 |
NUT - SAFETY NUT "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA /MOTO-GUZZI -AP8152300- More informationQuantity required : 1 |
||||||
|
12 |
AP8150086 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
13 |
AP8150020 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
14 |
AP8152301 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/2/img/71952.jpg)
15 |
AP8152290 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
16 |
AP8150473 - VIS More informationQuantity required : 1 |
