Vehicle Exploded View - APRILIA SR 50 Air 1997-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

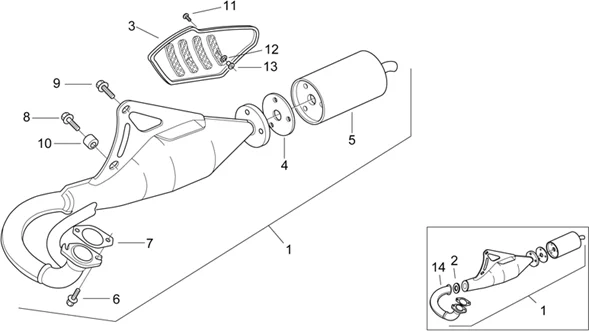

Chassis : 28.25 POT SILENCIEUX ALIGNÉ
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/573/SR_50_Air_1997-2001_28.25.PNG)
1 |
AP8219316 - POT D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/7/3/5/img/56735.JPG)
2 |
AP8219321 - JOINT BRIDE POT D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
3 |
AP8239257 - PROTECTION POT ALUMINIUM; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/8/5/1/5/img/58515.jpg)
3 |
EXHAUST PROTECTION "PIAGGIO GENUINE PART" APRILIA 50 RALLY, SR 1997>2000 -AP8248116- More informationQuantity required : 1 |
||||||
|
4 |
AP8219333 - JOINT POT D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
5 |
AP8219236 - SILENCIEUX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/8/img/71898.jpg)
6 |
AP8150521 - VITE TCEI M6X16 INOX More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/7/2/7/img/56727.jpg)
7 |
AP8219212 - JOINT POT D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
8 |
AP8152289 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
9 |
SCREW - (8X30) MULTI PURPOSE "PIAGGIO GENUINE PART" -AP8152288- More informationQuantity required : 1 |
||||||
|
10 |
AP8220357 - SILENTBLOC POT VERT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
11 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/8/img/71418.JPG)
12 |
AP8120870 - RONDELLE ISOLANTE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
13 |
AP8121075 - "DOUILLE EN ""T""" More informationQuantity required : 3 |
||||||
|
14 |
AP8219507 - TUYAU INITIAL POT D'ECH. More informationQuantity required : 1 |
