Vehicle Exploded View - APRILIA SR 50 Air 1997-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

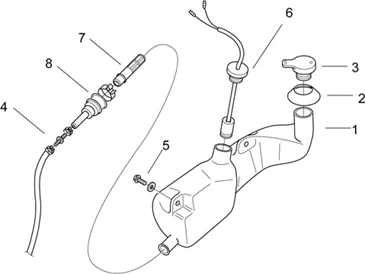

Chassis : 28.21 RÉSERVOIR HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/573/SR_50_Air_1997-2001_28.21.PNG)
1 |
AP8238433 - RESERVOIR HUILE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/4/0/img/56840.jpg)
2 |
GASKET FOR OIL TANK CAP "PIAGGIO GENUINE PART" APRILIA SR 50 1993>2004 -AP8220195- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/8/2/img/56882.jpg)
3 |
OIL TANK CAP "PIAGGIO GENUINE PART "APRILIA - COMMON FOR ALL 50CC SCOOTERS -AP8220421- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/6/img/71166.jpg)
4 |
2 WAY UNION (FOR FUEL) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8101944- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
5 |
AP8152279 - VIS BRIDE More informationQuantity required : 4 |
||||||
|
6 |
AP8212481 - INDICATEUR RESERVE HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/0/img/71170.jpg)
7 |
OIL TANK FILTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA 50-125 CC -AP8102224- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/4/2/img/45142.jpg)
8 |
RUBBER SPACER FOR OIL HOSE "PIAGGIO GENUINE PART" COMMON TO ALL APRILIA 50-125 -AP8102223- More informationQuantity required : 1 |
