Vehicle Exploded View - APRILIA SR 50 Air 1997-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

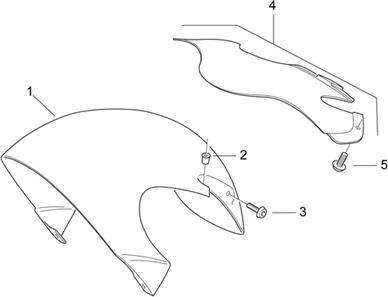

Chassis : 28.10 CARROSSERIE AV. V
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/573/SR_50_Air_1997-2001_28.10.PNG)
1 |
AP8226431 - G-BOUE AV BRUT R; More informationQuantity required : 1 |
||||||
|
1 |
AP8226671 - G.-B. AV.P.JAUNE; More informationQuantity required : 1 |
||||||
|
1 |
AP8226669 - GARDE-BOUE AV.NOIR EB.TRANS.; More informationQuantity required : 1 |
||||||
|
1 |
AP8226651 - GARDE-BOUE AV., E.BLEU TRANS.; More informationQuantity required : 1 |
||||||
|
1 |
AP8226650 - GARDE-BOUE AV., HOT RED TRANS.; More informationQuantity required : 1 |
||||||
|
1 |
AP8226434 - GARDE-BOUE AV BRUT; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
2 |
NUT - WITH RUBBER INSERT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -AP8120531- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
3 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339- More informationQuantity required : 2 |
||||||
|
4 |
AP8258036 - COUVERCLE INF. TABLIER, NOIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
5 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 3 |
