Vehicle Exploded View - APRILIA SR 50 Air 1997-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

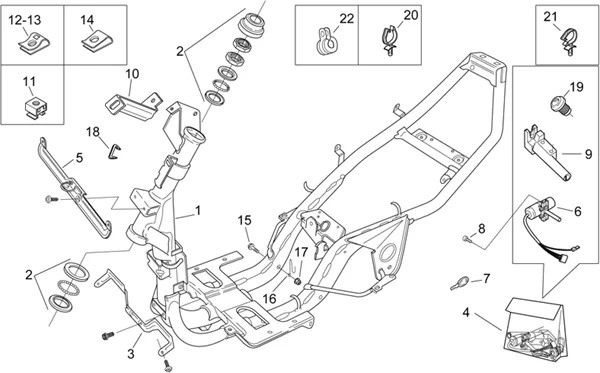

Chassis : 28.01 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/573/SR_50_Air_1997-2001_28.01.PNG)
2 |
AP8203666 - SERIE DIRECTION COMPLETE More informationQuantity required : 1 |
||||||
|
3 |
AP8234191 - SUPPORT SOUS-REPOSE-PIEDS; More informationQuantity required : 1 |
||||||
|
4 |
AP8201845 - KIT SERRURE More informationQuantity required : 1 |
||||||
|
6 |
ELECTRIC STARTER "PIAGGIO GENUINE PART" APRILIA 50 SR, RALLY, GULLIVER -AP8201600- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/2/3/img/45423.JPG)
7 |
AP8104613 - "CLE ""APRILIA"" SANS TRANSPO." More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/9/img/71919.jpg)
8 |
AP8152140 - VIS A ARRACHEMENT More informationQuantity required : 1 |
||||||
|
9 |
AP8202362 - SERRATURA SELLA More informationQuantity required : 1 |
||||||
|
10 |
AP8234130 - SUPPORT TABLIER AVANT; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/2/1/img/57021.jpg)
11 |
AP8221213 - ECROU EN CAGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
12 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 11 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
13 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/3/img/72143.jpg)
14 |
AP8201763 - CLIP POUR VIS TARAUD More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
15 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152285- More informationQuantity required : 1 |
||||||
|
16 |
AP8221248 - GUIDE CABLE PIPE BOUGIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
17 |
NUT - SAFETY NUT "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA /MOTO-GUZZI -AP8152300- More informationQuantity required : 1 |
||||||
|
18 |
AP8121309 - RESSORT CONNECTEURS; More informationQuantity required : 1 |
||||||
|
19 |
LOCK KIT- FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" APRILIA 125 ATLANTIC, CLASSIC, EUROPA, LEONARDO, 50 RS -AP8104609- More informationQuantity required : 1 |
||||||
|
20 |
AP8221311 - PASSE-CABLE More informationQuantity required : 1 |
||||||
|
21 |
AP8221310 - PASSE-CABLE More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
22 |
AP8120416 - COLLIER, NOIR More informationQuantity required : 3 |
