Vehicle Exploded View - APRILIA SR 50 Air 1997-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

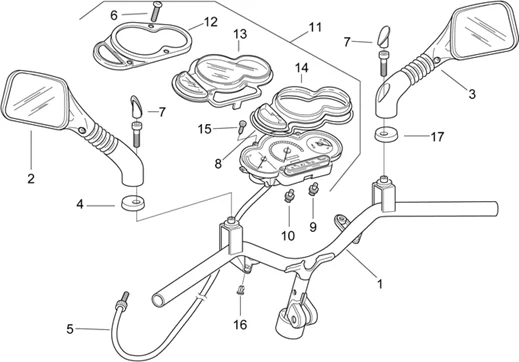

Chassis : 28.18 GUIDON-TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/573/SR_50_Air_1997-2001_28.18.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/6/3/7/img/56637.jpg)
1 |
HANDLEBAR "PIAGGIO GENUINE PART" APRILIA 50 SR H2O 1997>2012 -AP8218210- More informationQuantity required : 1 |
||||||
2 |
MIRROR- LEFT "PIAGGIO GENUINE PART" APRILIA 50 SR, AMICO, GULLIVER -AP8201976- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/4/1/1/img/55411.jpg)
3 |
MIRROR- RIGHT "PIAGGIO GENUINE PART" APRILIA 50 SR, AMICO, GULLIVER -AP8201975- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/9/0/img/56890.jpg)
4 |
AP8220454 - CAOUTCHOUC MIROIR GAUCHE; More informationQuantity required : 1 |
||||||
|
5 |
AP8214163 - CABLE COMPTEUR KM; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/8/img/72308.jpg)
6 |
AP8221242 - VIS TARAUD SPECIALE More informationQuantity required : 4 |
||||||
|
7 |
AP8202071 - BOUCHON RETRO DTE+GCHE More informationQuantity required : 2 |
||||||
|
8 |
AP8220555 - JOINT More informationQuantity required : 1 |
||||||
|
9 |
AP8212407 - PORTE-AMPOULE COMPLET More informationQuantity required : 5 |
||||||
|
10 |
AP8212408 - PORTE-AMPOULE COMPLET More informationQuantity required : 2 |
||||||
|
11 |
AP8212793 - TABLEAU DE BORD; More informationQuantity required : 1 |
||||||
|
13 |
AP8212873 - PROT. VITRE TABL.BORD; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
15 |
AP8150421 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/1/img/71191.JPG)
16 |
AP8102671 - RIVET EN PLASTIQUE More informationQuantity required : 2 |
||||||
|
17 |
AP8220453 - CAOUTCHOUC MIROIR DROITE; More informationQuantity required : 1 |
