Vehicle Exploded View - APRILIA SR 50 Air 1997-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

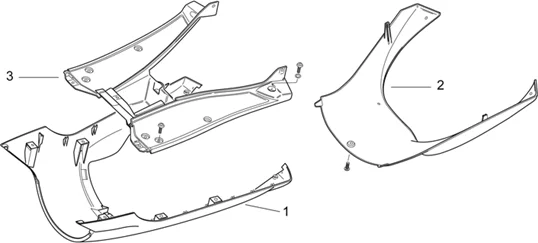

Chassis : 28.12 CARROSSERIE CENTRALE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/573/SR_50_Air_1997-2001_28.12.PNG)
1 |
AP8238540 - SOUS-REP-PIEDS, AL.180 More informationQuantity required : 1 |
||||||
|
1 |
AP8239333 - SOUS-REP-PIEDS, GRIS; More informationQuantity required : 1 |
||||||
|
1 |
AP8258201 - SOUS-REP-PIEDS NOIR+DEC.; More informationQuantity required : 1 |
||||||
|
1 |
AP8258232 - SOUS-REP-PIEDS NOIR+DEC.; More informationQuantity required : 1 |
||||||
|
1 |
AP8258237 - SOUS-REP-PIEDS NOIR+DEC.; More informationQuantity required : 1 |
||||||
|
2 |
AP8258202 - PROTEGE-CARTER NOIR; More informationQuantity required : 1 |
||||||
|
2 |
AP8249542 - TABLIER DE CARTER GRIS; More informationQuantity required : 1 |
||||||
|
2 |
AP8239825 - BOUCLIER CARTER, GRIS Q.; More informationQuantity required : 1 |
||||||
|
3 |
AP8238363 - PLANCHER REPOSE-PIEDS GRIS; More informationQuantity required : 1 |
||||||
|
3 |
AP8249892 - PLANCHER REPOSE-PIEDS NOIR; More informationQuantity required : 1 |
||||||
|
3 |
AP8248805 - REPOSE-PIEDS BLEU; More informationQuantity required : 1 |
