Vehicle Exploded View - APRILIA NA MANA 850 NA 850 Mana 2007-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

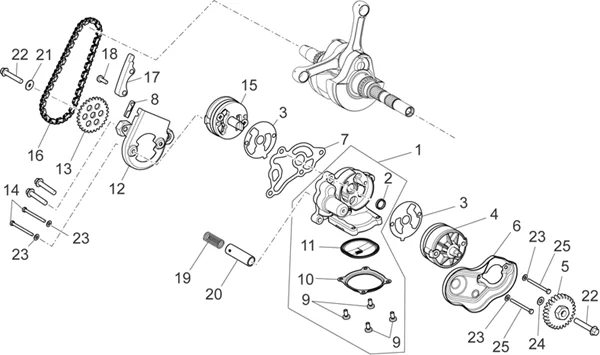

Moteur : 29.35 POMPE HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/746/NA_850_Mana_2007-2011_29.35.PNG)
1 |
8343295 - SUPPORT POMPE A HUILE More informationQuantity required : 1 |
||||||
|
2 |
82756R - CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/4/6/img/69046.jpg)
3 |
833046 - JOINT More informationQuantity required : 2 |
||||||
|
4 |
834025 - POMPE A HUILE More informationQuantity required : 1 |
||||||
|
5 |
832906 - ENGRANAGE POMPE HUILE More informationQuantity required : 1 |
||||||
|
6 |
834043 - PROTECTION More informationQuantity required : 1 |
||||||
|
7 |
834195 - JOINT More informationQuantity required : 1 |
||||||
|
8 |
845246 - SUPPORT More informationQuantity required : 1 |
||||||
|
9 |
1A003111 - VIS M5X10 More informationQuantity required : 4 |
||||||
|
9 |
1A003111 - VIS M5X10 More informationQuantity required : 4 |
||||||
|
10 |
834031 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/6/img/69106.jpg)
11 |
OIL PUMP FILTER "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV, MANA -834179 More informationQuantity required : 1 |
||||||
|
12 |
833055 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/9/8/img/68998.jpg)
13 |
OIL PUMP GEAR "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV, MANA -832278- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/0/6/img/65606.jpg)
14 |
030039 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/3/6/img/70636.jpg)
15 |
876841 - POMPE HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/6/2/img/68962.jpg)
16 |
TIMING CHAIN "PIAGGIO GENUINE PART" 350 MP3, BEVERLY, X10/GILERA 800 GP/APRILIA 850 SRV, MANA -831333 More informationQuantity required : 1 |
||||||
|
17 |
831335 - PATIN More informationQuantity required : 1 |
||||||
|
18 |
873102 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/4/7/img/68947.JPG)
19 |
831130 - RESSORT More informationQuantity required : 1 |
||||||
|
20 |
834033 - VOLET HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/1/img/66501.jpg)
21 |
436695 - CONE ELASTIQUE 6X20 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
22 |
B016426 - VIS TEF M6X14 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/7/img/63837.jpg)
23 |
006965 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
24 |
006976 - RONDELLE S00697600 More informationQuantity required : 1 |
||||||
|
25 |
030039 - VIS More informationQuantity required : 2 |
