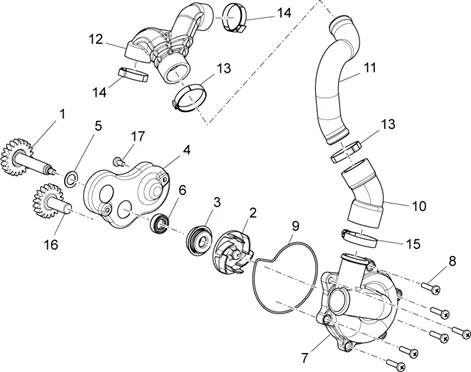

Moteur : 29.48 POMPE À EAU
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/746/NA_850_Mana_2007-2011_29.48.PNG)
1 |
872025 - AXE POMPE-EAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/5/1/img/69051.jpg)
2 |
833054 - ROUE DE POMPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/7/6/img/68876.jpg)
3 |
WATER PUMP GASKET "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, 125-250 X7, X8, X-EVO, BEVERLY, X10/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -82991R More informationQuantity required : 1 |
||||||
|
4 |
834178 - TOLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/0/8/img/71008.jpg)
5 |
974290 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/1/1/img/174611.jpg)
6 |
1A018564 - SEAL RING More informationQuantity required : 1 |
||||||
|
6 |
1A018564 - SEAL RING More informationQuantity required : 1 |
||||||
|
7 |
B018030 - COUVERCLE POMPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/3/img/72733.jpg)
8 |
B016808 - VIS M5X20 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/0/img/68770.jpg)
8 |
SCREW - (5X22) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -828662 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/7/5/img/72775.jpg)
9 |
GASKET FOR WATER PUMP COVER "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV, MANA -B018029 More informationQuantity required : 1 |
||||||
|
10 |
854805 - TUYAU DE RACCORD More informationQuantity required : 1 |
||||||
|
11 |
854804 - TUYAU REFOULEMENT More informationQuantity required : 1 |
||||||
|
12 |
876695 - CONDUITE D'ARRIVEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/3/img/72883.jpg)
13 |
CM001924 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/8/img/72878.jpg)
14 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTERS -CM001917 More informationQuantity required : 2 |
||||||
|
15 |
CM001925 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/2/6/img/69026.jpg)
16 |
832926 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
17 |
1A003111 - VIS M5X10 More informationQuantity required : 2 |
||||||
|
17 |
1A003111 - VIS M5X10 More informationQuantity required : 2 |
