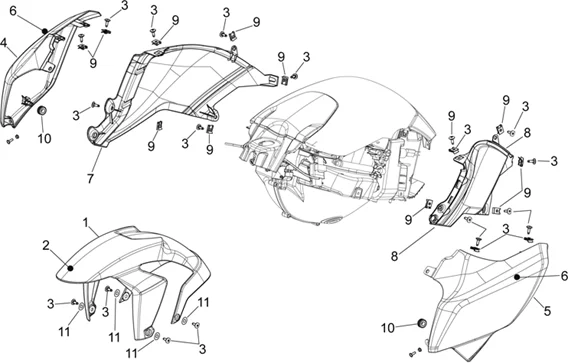

Chassis : 28.08 CARROSSERIE AV. - GARDE-BOUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/746/NA_850_Mana_2007-2011_28.08.PNG)
1 |
85191740XN2 - GARDE-BOUE AV More informationQuantity required : 1 |
|||||||||
|
1 |
85191700BM - GARDE-BOUE AVANT BLANC More informationQuantity required : 1 |
|||||||||
|
1 |
85191700XD1 - GARDE-BOUE AV More informationQuantity required : 1 |
|||||||||
|
1 |
85191700XED - GARDE-BOUE AV.GRIS More informationQuantity required : 1 |
|||||||||
|
1 |
85191700XN5 - DECOR GARD-B AV NOIR More informationQuantity required : 1 |
|||||||||
|
1 |
85191700XR2 - GARDE-BOUE AVANT PEINT ROUGE More informationQuantity required : 1 |
|||||||||
|
1 |
85191700XR7 - DECOR GARD-B AV ROUGE More informationQuantity required : 1 |
|||||||||
|
2 |
856097 - DECALCOMANIE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
3 |
2B014101 - INOX HEXAGON COCKET SCREWS M5X12 More informationQuantity required : 23 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
3 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 23 |
|||||||||
|
4 |
85192500BM - CONVOYEUR D, BLAN More informationQuantity required : 1 |
|||||||||
|
4 |
851925 - CONVOYEUR D. More informationQuantity required : 1 |
|||||||||
|
4 |
85192500XED - CONV.DR., GRISE More informationQuantity required : 1 |
|||||||||
|
4 |
85192500XN2 - CONVOYEUR D More informationQuantity required : 1 |
|||||||||
|
4 |
85192500XN5 - JOINT CONVOYEUR D More informationQuantity required : 1 |
|||||||||
|
4 |
85192500XR7 - More informationQuantity required : 1 |
|||||||||
|
5 |
85192600BM - CONVOYEUR G, BLAN More informationQuantity required : 1 |
|||||||||
|
5 |
85192600XD1 - CONVOYEUR GAUCHE BLEU More informationQuantity required : 1 |
|||||||||
|
5 |
85192600XED - CONV.GAUCHE GRISE More informationQuantity required : 1 |
|||||||||
|
5 |
85192600XN2 - CONVOYEUR G More informationQuantity required : 1 |
|||||||||
|
5 |
85192600XN5 - JOINT CONVOYEUR G More informationQuantity required : 1 |
|||||||||
|
5 |
85192600XR2 - CONVOYEUR AIR More informationQuantity required : 1 |
|||||||||
|
5 |
85192600XR7 - CONVOYEUR G, ROUGE More informationQuantity required : 1 |
|||||||||
|
6 |
854903 - PLAQUETTE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/9/1/5/img/41915.jpg)
6 |
DECAL- "APRILIA" ON RIGHT/LEFT FLANK "PIAGGIO GENUINE PART" PIAGGIO APRILIA 750 SHIVER - SILVER -893093 More informationQuantity required : 2 |
|||||||||
|
7 |
85192700BM - AILE D More informationQuantity required : 1 |
|||||||||
|
7 |
85192700XE1 - AILE D More informationQuantity required : 1 |
|||||||||
|
7 |
85192700XE5 - FLANC DR.P.GRIS More informationQuantity required : 1 |
|||||||||
|
7 |
85192700XE8 - AILE D, GRISE More informationQuantity required : 1 |
|||||||||
|
7 |
85192700XEN - FLANC DR.P.GRIS More informationQuantity required : 1 |
|||||||||
|
7 |
85192700XN5 - FLANC D, NOIR More informationQuantity required : 1 |
|||||||||
|
7 |
85192700XR7 - FLANC D, ROUGE More informationQuantity required : 1 |
|||||||||
|
8 |
85192800BM - FLANC AR. G More informationQuantity required : 1 |
|||||||||
|
8 |
85192800XE1 - FLANC G More informationQuantity required : 1 |
|||||||||
|
8 |
85192800XE5 - FLANC G.P.GRIS More informationQuantity required : 1 |
|||||||||
|
8 |
85192800XE8 - FLANC G.P.GRIS More informationQuantity required : 1 |
|||||||||
|
8 |
85192800XEN - FLANC G.P.GRIS More informationQuantity required : 1 |
|||||||||
|
8 |
85192800XN5 - FLANC AR. G More informationQuantity required : 1 |
|||||||||
|
8 |
85192800XR7 - FLANC AR. G, ROUGE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
9 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 14 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
10 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/6/img/71896.jpg)
11 |
AP8150502 - RONDELLE More informationQuantity required : 4 |
|||||||||
