Vehicle Exploded View - APRILIA NA MANA 850 NA 850 Mana 2007-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

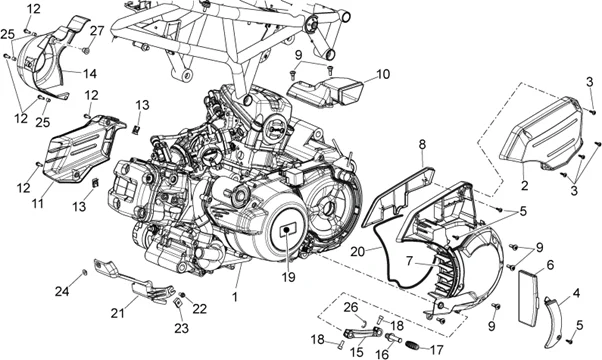

Moteur : 29.19 MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/746/NA_850_Mana_2007-2011_29.19.PNG)
1 |
8764505 - MOTEUR 850 4T/8V E3 More informationQuantity required : 1 |
||||||
|
1 |
8764605 - MOTEUR 850 4T8V E3 More informationQuantity required : 1 |
||||||
|
1 |
COMPLETE ENGINE "PIAGGIO GENUINE PART" APRILIA 850 MANA -8801305- More informationQuantity required : 1 |
||||||
|
1 |
8801315 - More informationQuantity required : 1 |
||||||
|
2 |
872642 - COUVERCLE CONVOYEUR AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
3 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 4 |
||||||
|
4 |
87264300XEA - COUVERCLE FILTRE More informationQuantity required : 1 |
||||||
|
4 |
87264300XN6 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
5 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 3 |
||||||
|
6 |
849957 - FILTRE More informationQuantity required : 1 |
||||||
|
7 |
85812600XEA - CONVOYEUR AIR More informationQuantity required : 1 |
||||||
|
7 |
85812600XN6 - CONVOYEUR More informationQuantity required : 1 |
||||||
|
8 |
872644 - FILTRE AIR More informationQuantity required : 1 |
||||||
|
9 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 8 |
||||||
|
10 |
873415 - CANALISATION More informationQuantity required : 1 |
||||||
|
11 |
854511 - CARTER DE VOLANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
12 |
AP8152273 - VIS BRIDE More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
13 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 2 |
||||||
|
14 |
85189000XN6 - COUVERCLE More informationQuantity required : 1 |
||||||
|
14 |
Couvercle pignon |
||||||
|
15 |
851843 - LEVIER BO?TE DE VITESSES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/2/img/71452.jpg)
16 |
REAR BRAKE PEDAL PIN "PIAGGIO GENUINE PART" POUR MOTO-GUZZI 850-1200 NORGE, BREVA, 1200 SPORT/GEAR SELECTOR PIN FOR APRILIA MOTORBIKES -AP8121221 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/2/img/71422.jpg)
17 |
LEVER RUBBER FOR REAR BRAKE LEVER "PIAGGIO GENUINE PART" FOR MOTO-GUZZI 850-1200 NORGE, BREVA, 1200 SPORT -AP8120912 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/4/img/71824.jpg)
18 |
SCREW - (6X16) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE + MAXISCOOTER APRILIA -AP8150137 More informationQuantity required : 2 |
||||||
|
19 |
858472 - PLAQUE More informationQuantity required : 1 |
||||||
|
20 |
871607 - JOINT CONVOYEUR More informationQuantity required : 1 |
||||||
|
21 |
856921 - PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
22 |
AP8152277 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
23 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
24 |
AP8121032 - DOUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/5/img/72295.jpg)
25 |
AP8221036 - BAGUE 5,3X8X7,1 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/1/img/71891.jpg)
26 |
AP8150462 - BAGUE SEEGER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/3/2/img/69632.jpg)
27 |
SPACER- FOR EXHAUST "PIAGGIO GENUINE PART" 500 MP3, BEVERLY/APRILIA 500 SCARABEO, ATLANTIC -851946 More informationQuantity required : 1 |
