Vehicle Exploded View - APRILIA NA MANA 850 NA 850 Mana 2007-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

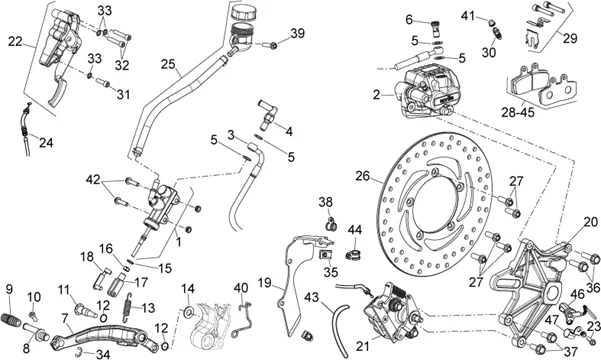

Chassis : 28.24 SYS.FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/746/NA_850_Mana_2007-2011_28.24.PNG)
1 |
851894 - MA?T.CYL. FREIN AR More informationQuantity required : 1 |
|||||||||
|
1 |
860119 - MA?T.CYL. FREIN AR More informationQuantity required : 1 |
|||||||||
|
2 |
856526 - PINCE FREIN AR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/3/5/2/img/39352.jpg)
3 |
REAR BRAKE HOSE "PIAGGIO GENUINE PART" GILERA 850 MANA -851895 More informationQuantity required : 1 |
|||||||||
|
4 |
854973 - INTERRUPTEUR STOP More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
5 |
AP8113004 - RONDELLE More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
6 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 1 |
|||||||||
|
7 |
851889 - LEVIER DE FREIN AR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/2/img/71452.jpg)
8 |
REAR BRAKE PEDAL PIN "PIAGGIO GENUINE PART" POUR MOTO-GUZZI 850-1200 NORGE, BREVA, 1200 SPORT/GEAR SELECTOR PIN FOR APRILIA MOTORBIKES -AP8121221 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/2/img/71422.jpg)
9 |
LEVER RUBBER FOR REAR BRAKE LEVER "PIAGGIO GENUINE PART" FOR MOTO-GUZZI 850-1200 NORGE, BREVA, 1200 SPORT -AP8120912 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
10 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/5/7/7/5/img/215775.jpg)
11 |
2B012762 - PIVOT MAN.FREIN ARR. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/5/1/img/70751.jpg)
11 |
REAR BRAKE PEDAL PIN "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -884033 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/3/8/img/71738.jpg)
12 |
AP8144007 - JOINT TORIQUE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/9/9/img/71499.jpg)
13 |
AP8121927 - RESSORT MAN.FERIN AR.; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
14 |
AP8150020 - RONDELLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/7/img/71387.jpg)
15 |
AP8120178 - JOINT TORIQUE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
16 |
AP8150026 - ECROU More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/7/img/71167.jpg)
17 |
FORK FOR REAR BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART" COMMON TO APRILIA/ MOTO-GUZZI MOTORBIKES RANGE -AP8101968 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/2/9/img/72129.jpg)
18 |
CLIP FOR REAR MASTER CYCLINDER "PIAGGIO GENUINE PART" COMMUN A LA GAMME MOTO APRILIA/MOTO-GUZZI -AP8201301 More informationQuantity required : 1 |
|||||||||
|
19 |
856556 - SUPP.TUYAU FREIN AR. More informationQuantity required : 1 |
|||||||||
|
20 |
860120 - RESSORT SUPPORT More informationQuantity required : 1 |
|||||||||
|
20 |
856530 - BRIDE More informationQuantity required : 1 |
|||||||||
|
21 |
856528 - PINCES FREIN More informationQuantity required : 1 |
|||||||||
|
22 |
858547 - LEVIER DU FREIN More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
23 |
AP8152273 - VIS BRIDE More informationQuantity required : 1 |
|||||||||
|
24 |
856011 - TRANSMISSION More informationQuantity required : 1 |
|||||||||
|
25 |
856531 - RESERVOIR HUILE More informationQuantity required : 1 |
|||||||||
|
26 |
853387 - DISQUE FREIN ARRIERE More informationQuantity required : 1 |
|||||||||
|
26 |
860117 - DISQUE FREIN More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
27 |
SCREW - (8X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152286 More informationQuantity required : 5 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/7/2/img/71672.jpg)
28 |
BRAKE PADS - "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7 REAR/APRILIA 125-250 SPORT-CITY FRONT, 400-500 SCARABEO FRONT, 850 NA-MANA REAR -AP8133798 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/7/3/img/71673.jpg)
29 |
PINS+CALIPER SPRINGS KIT- "PIAGGIO GENUINE PART" APRILIA 125-250-300 SPORT-CITY/MOTO-GUZZI 750 V7, NEVADA -AP8133799 More informationQuantity required : 1 |
|||||||||
|
30 |
AP8133800 - SPURGO ARIA More informationQuantity required : 1 |
|||||||||
|
31 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/1/img/71841.jpg)
32 |
AP8150220 - VIS More informationQuantity required : 2 |
|||||||||
|
33 |
AP8150021 - RONDELLE EVENT.EXT. More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/1/img/71891.jpg)
34 |
AP8150462 - BAGUE SEEGER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
35 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 1 |
|||||||||
|
36 |
856529 - VIS More informationQuantity required : 2 |
|||||||||
|
37 |
856527 - VIS More informationQuantity required : 2 |
|||||||||
|
38 |
AP8134167 - PLAQUETTE TUYAU FREIN; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/5/img/67365.jpg)
39 |
598839 - VIS More informationQuantity required : 1 |
|||||||||
|
40 |
858193 - COLLIER More informationQuantity required : 1 |
|||||||||
|
41 |
AP8213575 - CAPPUCCIO SPURGO ARIA More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
42 |
AP8152279 - VIS BRIDE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/3/img/71423.jpg)
43 |
AP8120956 - BREATHER PIPE More informationQuantity required : 1 |
|||||||||
|
44 |
AP8104451 - GUIDE-CABLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/9/3/img/70793.jpg)
45 |
PARKING BRAKE PADS - "PIAGGIO GENUINE PART" APRILIA 850 NA-MANA -890490 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
46 |
1D003350 - ACTIVE ABS WHEEL SPEED SENSOR More informationQuantity required : 1 |
|||||||||
|
46 |
1D003350 - ACTIVE ABS WHEEL SPEED SENSOR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/7/7/img/69377.jpg)
47 |
845978 - COLLIER More informationQuantity required : 1 |
|||||||||
