Vehicle Exploded View - APRILIA NA MANA 850 NA 850 Mana 2007-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

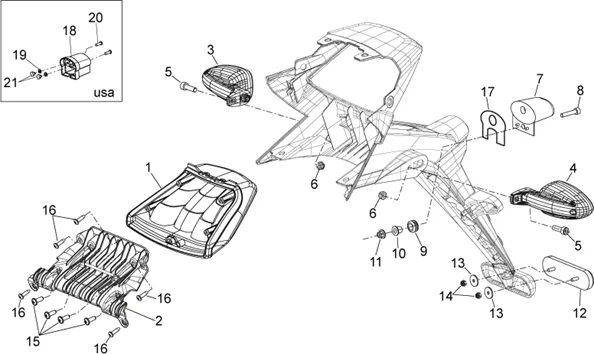

Chassis : 28.26 FEUX ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/746/NA_850_Mana_2007-2011_28.26.PNG)
1 |
851911 - FEU ARRIERE More informationQuantity required : 1 |
||||||
|
2 |
852859 - SUPPORT PHARE AR More informationQuantity required : 1 |
||||||
|
3 |
853403 - CLIGNOTANT AV DROITE More informationQuantity required : 1 |
||||||
|
4 |
853404 - CLIGNOTANT AVANT GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/4/img/71824.jpg)
5 |
SCREW - (6X16) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE + MAXISCOOTER APRILIA -AP8150137 More informationQuantity required : 2 |
||||||
|
6 |
AP8150474 - ECROU BORGNE INOX More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/4/2/img/69642.jpg)
7 |
NUMBER PLATE LIGHT "PIAGGIO GENUINE PART" COMMON TO THE MOTO APRILIA + MOTO-GUZZI RANGE -85256R More informationQuantity required : 1 |
||||||
|
8 |
AP8150350 - VIS TCEI M 3X25 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/6/img/71276.jpg)
9 |
AP8112600 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
10 |
AP8121795 - DOUILLE EN T More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
11 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/8/img/71568.jpg)
12 |
UPPER SPEEDOMETER COVER "PIAGGIO GENUINE PART" 50-125 FLY 2012> -5A000001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/6/img/71826.jpg)
13 |
AP8150159 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
14 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
15 |
AP8150509 - VIS TARAUD 5X14 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
16 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413 More informationQuantity required : 5 |
||||||
|
17 |
AP8117258 - EPONGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/5/3/0/img/96530.jpg)
18 |
855078 - SUPPORT ECLAIRAGE PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/2/img/50962.jpg)
19 |
AP8152184 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/7/img/71937.jpg)
20 |
AP8152270 - VIS More informationQuantity required : 2 |
||||||
|
21 |
AP8221043 - DOUILLE ENTRETOISE More informationQuantity required : 2 |
