Vehicle Exploded View - APRILIA NA MANA 850 NA 850 Mana 2007-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

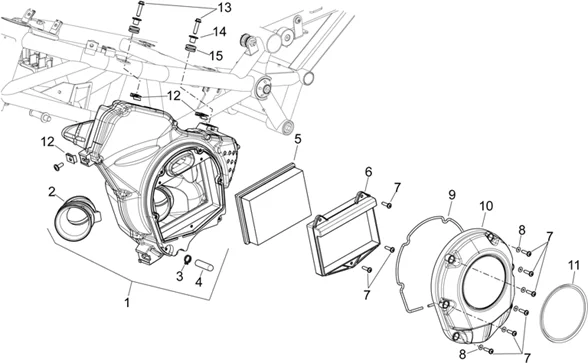

Chassis : 28.18 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/746/NA_850_Mana_2007-2011_28.18.PNG)
1 |
851853 - CORPS FILTRE More informationQuantity required : 1 |
||||||
|
2 |
851858 - MANCHON D'ASPIRATION; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/2/img/71182.jpg)
3 |
AP8102520 - COLLIER SERR. TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/0/5/img/72005.JPG)
4 |
AP8161054 - TUBETTO SCARICO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/4/7/img/69647.jpg)
5 |
AIR FILTER"PIAGGIO GENUINE PART" APRILIA 850 SRV 2012>, 850 MANA 2007>2016/GILERA 800 GP 2007>2011 -852944 More informationQuantity required : 1 |
||||||
|
6 |
851855 - SUPPORT FILTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
7 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/8/4/img/97084.jpg)
8 |
AP8150272 - RONDELLE ELASTIQUE COURBE More informationQuantity required : 6 |
||||||
|
9 |
890513 - JOINT D.4 More informationQuantity required : 1 |
||||||
|
10 |
85186000XEE - COUVERCLE CORPS FILTRE More informationQuantity required : 1 |
||||||
|
11 |
856184 - MONOGRAMME More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
12 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
13 |
AP8152280 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
14 |
AP8221023 - "DOUILLE EN ""T"" *" More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
15 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 2 |
