Vehicle Exploded View - APRILIA NA MANA 850 NA 850 Mana 2007-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

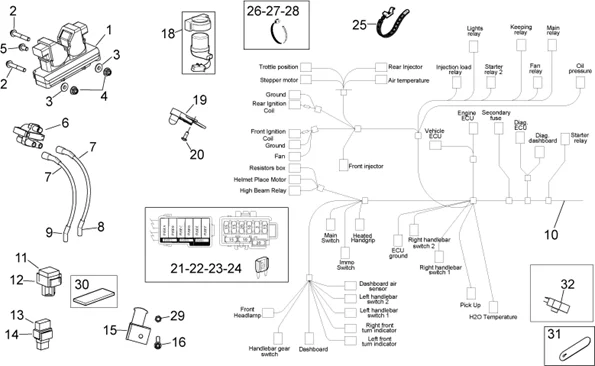

Chassis : 28.27 CIRCUIT ELECTRIQUE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/746/NA_850_Mana_2007-2011_28.27.PNG)
1 |
641197 - CENTRALE ELECTRONIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/7/6/img/50976.jpg)
2 |
AP8152283 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
3 |
AP8121032 - DOUILLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
4 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
5 |
AP8152277 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/2/6/img/67826.jpg)
6 |
IGNITION COIL - HIGH TENSION "PIAGGIO GENUINE PART" 500 MP3, X10, BEVERLY/GILERA 500 FUOCO, 800 GP/APRILIA 850 SRV, MANA, 500 SCARABEO -639187 More informationQuantity required : 2 |
||||||
|
7 |
853398 - CABLE HT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/1/8/img/73418.jpg)
8 |
SPARK PLUG CAP "PIAGGIO GENUINE PART" APRILLIA 850 MANA -GU02717450 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/0/4/img/72604.jpg)
9 |
SPARK PLUG CAP "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 BREVA, SPORT, NORGE/APRILIA 450-550 RXV, SXV -AP9100423 More informationQuantity required : 2 |
||||||
|
10 |
851903 - CABLAGE PRINCIPAL More informationQuantity required : 1 |
||||||
|
10 |
860122 - CABLAGE PRINCIPAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/2/7/img/70827.jpg)
11 |
INJECTION RELAY "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -895481 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/9/img/72289.jpg)
12 |
AP8220546 - CAOUTCHOUC SUPPORT RELAIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
13 |
RELAY 12V/30A "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA/MOTO-GUZZI -AP8224462 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/7/img/72277.jpg)
14 |
AP8220283 - CAOUTCHOUC More informationQuantity required : 6 |
||||||
|
15 |
AP8234094 - SUPPORT P-FUSIBLES; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
16 |
AP8152272 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
17 |
AP8150114 - ECROU AUTOFR. BAS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/0/img/71280.jpg)
18 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" APRILIA 750 SHIVER, DORSODURO, 1000 RSV-2, CAPONORD, 650 PEGASSO, 125-250-500 ATLANTIC, SCARABEO -AP81129275 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/2/img/71572.jpg)
19 |
AP8124936 - DETEC. TEMPER. AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/0/0/6/img/51006.jpg)
20 |
AP8152413 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
21 |
AP8127346 - FUSIBLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/4/img/66254.jpg)
22 |
292507 - FUSIBLE 10A More informationQuantity required : 2 |
||||||
|
23 |
977772 - FUSIBLE 15A More informationQuantity required : 4 |
||||||
|
24 |
AP8176100 - FUSIBILE 20A More informationQuantity required : 2 |
||||||
|
25 |
GU06609600 - COLLIER More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/5/img/71395.jpg)
26 |
AP8120422 - COLLIER, NOIR More informationQuantity required : 4 |
||||||
|
27 |
AP8102386 - FASCETTA IN NYLON NERA More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
28 |
AP8120416 - COLLIER, NOIR More informationQuantity required : 11 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/9/img/71889.jpg)
29 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA/MOTO/GUZZI -AP8150451 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/1/4/img/46214.jpg)
30 |
AP8117033 - ADHESIVE SPONGE More informationQuantity required : 1 |
||||||
|
31 |
AP8120422 - COLLIER, NOIR More informationQuantity required : 1 |
||||||
|
32 |
896897 - STAND CONTROL DEVICE More informationQuantity required : 1 |
