Vehicle Exploded View - VESPA VESPA 946 125 VESPA 946 125 ABS E5 CD 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

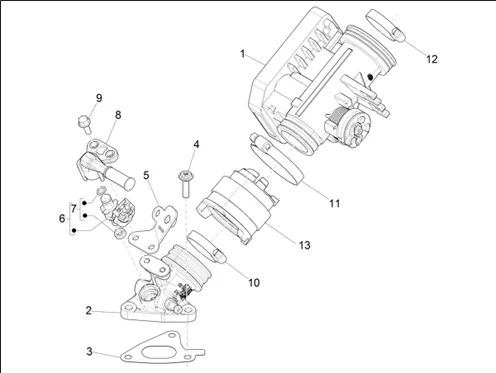

Moteur : 01.36 BOÎTIER PAPILLON - INJECTEUR - RACCORD D'ADMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1203/VESPA_946_125_ABS_E5_CD_2021_(EMEA)_01.36.png)
1 |
CM29930545 - BOITIER PAPILLON AVEC ECU More informationQuantity required : 1 |
||||||
|
2 |
1A020251 - RACCORD D'ADMISSION AVEC P.I. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/3/4/img/127234.jpg)
3 |
1A003750 - JOINT More informationQuantity required : 1 |
||||||
|
4 |
1A011564 - BOULON M6 X 22 More informationQuantity required : 3 |
||||||
|
5 |
1B007875 - FUEL PIPE SUPPORT WITH IP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/7/4/img/127574.jpg)
6 |
INJECTOR "PIAGGIO GENUINE PART" 50-125 LIBERTY, PRIMAVERA, SPRINT IGET 3 SOUPAPES -1D000698 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/6/img/127596.jpg)
7 |
1D001198 - SET SEGMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/1/8/img/149118.jpg)
8 |
1A003720 - CORPS D'INJECTEUR More informationQuantity required : 1 |
||||||
|
9 |
1A003001 - VIS PARKER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/5/6/img/111556.jpg)
10 |
614188 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/3/2/img/75332.jpg)
11 |
1A000833 - COLLIER More informationQuantity required : 1 |
||||||
|
12 |
614188 - COLLIER More informationQuantity required : 1 |
||||||
|
13 |
1A003984 - RACCORD DU FLEXIBLE More informationQuantity required : 1 |
