Vehicle Exploded View - VESPA VESPA 946 125 VESPA 946 125 ABS E5 CD 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

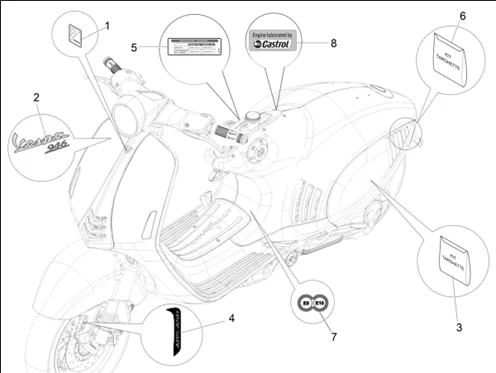

Châssis - parties plastiques - carrosseries : 02.38 MONOGRAMMES - DECORATIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1203/VESPA_946_125_ABS_E5_CD_2021_(EMEA)_02.38.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/2/9/img/67129.jpg)
1 |
DECAL- "PIAGGIO GENUINE PART" 125 VESPA PX (VNX-VSX) -576464 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/5/0/0/5/img/205005.jpg)
2 |
2H004258 - SHIELD PLATE "VESPA 946" GOLD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/5/0/0/6/img/205006.jpg)
3 |
2H003965 - KIT STICKER More informationQuantity required : 1 |
||||||
4 |
1B000559 - MONOGRAMME "ABS-ASR" More informationQuantity required : 1 |
||||||
|
5 |
1G000190 - MONOGRAMME More informationQuantity required : 1 |
||||||
|
6 |
1B000552 - SET AUTOCOLLANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/1/0/3/img/156103.jpg)
7 |
2B0059385 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/2/6/7/img/174267.jpg)
8 |
2H002046 - STICKER More informationQuantity required : 1 |
