Vehicle Exploded View - VESPA VESPA 946 125 VESPA 946 125 ABS E5 CD 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

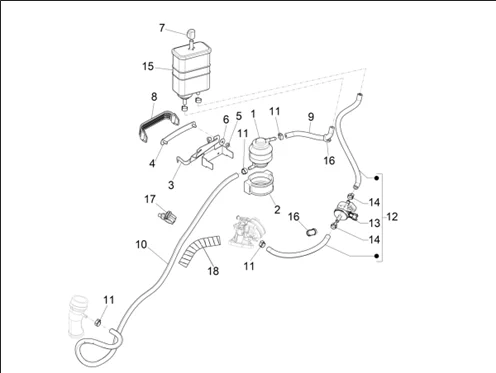

Châssis - parties plastiques - carrosseries : 02.61 SYSTÈME ANTI-ÉVAPORATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1203/VESPA_946_125_ABS_E5_CD_2021_(EMEA)_02.61.png)
1 |
CM028209 - SOUPAPE More informationQuantity required : 1 |
||||||
|
2 |
576454 - SUPPORT More informationQuantity required : 1 |
||||||
|
3 |
1B000437 - PLAQUE More informationQuantity required : 1 |
||||||
|
4 |
1B000585 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/1/img/65941.jpg)
5 |
219277 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/6/img/65356.jpg)
6 |
013092 - RONDELLE S01309200 More informationQuantity required : 2 |
||||||
|
7 |
1B000756 - CACHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/8/9/img/67289.jpg)
8 |
583921 - SANGLE More informationQuantity required : 1 |
||||||
|
9 |
CM177910 - TUYAU More informationQuantity required : 1 |
||||||
|
10 |
CM177926 - TUYAU SAE J30 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/5/img/72875.jpg)
11 |
CM001914 - COLLIER More informationQuantity required : 6 |
||||||
|
12 |
1B00894345 - TUYAU ABSORBEUR/DEPRESSEUR COMPL. More informationQuantity required : 1 |
||||||
|
13 |
CM2874055 - SOLENOID ELECTRIQUE More informationQuantity required : 1 |
||||||
|
14 |
CM001914 - COLLIER More informationQuantity required : 2 |
||||||
|
15 |
1B0045715 - CANISTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
16 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/0/img/72910.jpg)
17 |
CM006910 - RESSORT More informationQuantity required : 2 |
||||||
|
18 |
CM083605 - PROTECTION More informationQuantity required : 1 |
