Vehicle Exploded View - VESPA VESPA 946 125 VESPA 946 125 ABS E5 CD 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

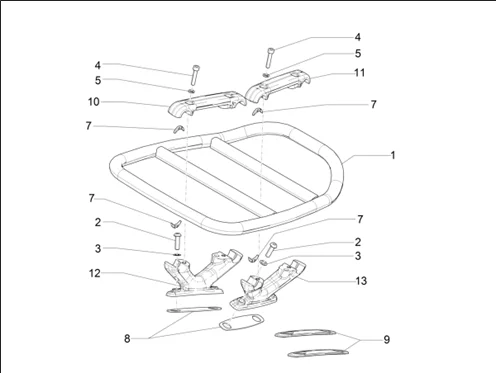

Châssis - parties plastiques - carrosseries : 02.44 PORTE-BAGAGES ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1203/VESPA_946_125_ABS_E5_CD_2021_(EMEA)_02.44.png)
1 |
1B008195 - PORTE-BAGAGES AVEC PIECES INTERNES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/9/8/img/69098.jpg)
2 |
834038 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/8/img/63838.jpg)
3 |
006966 - RONDELLE S00696600 More informationQuantity required : 4 |
||||||
|
4 |
1B000692 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
5 |
016405 - RONDELLE S01640500 More informationQuantity required : 4 |
||||||
|
7 |
1B000006 - JOINT More informationQuantity required : 8 |
||||||
|
8 |
1B000007 - JOINT More informationQuantity required : 2 |
||||||
|
9 |
1B008190 - BOUCHON FIXATION PORTE-BAGAGES More informationQuantity required : 2 |
||||||
|
10 |
1B008193 - SUPPORT SUPERIEUR DROIT PORTE-BAGAGE More informationQuantity required : 1 |
||||||
|
11 |
1B008191 - SUPPORT SUPERIEUR GAUCHE PORTE-BAGAGE More informationQuantity required : 1 |
||||||
|
12 |
1B008194 - SUPPORT INFERIEUR DROIT PORTE-BAGAGE More informationQuantity required : 1 |
||||||
|
13 |
1B008192 - LH LOWER MOUNT FOR LUGGAGE RACK More informationQuantity required : 1 |
