Vehicle Exploded View - VESPA VESPA 946 125 VESPA 946 125 ABS E5 CD 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

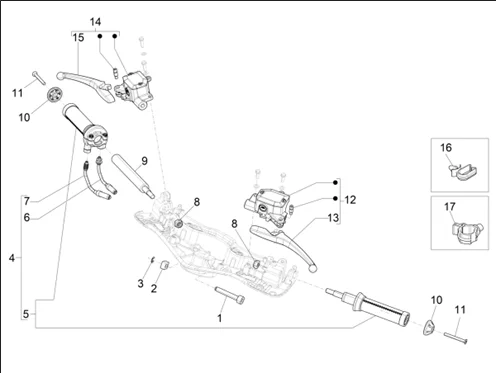

Guidon/direction : 03.06 GUIDON - MAÎTRE CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1203/VESPA_946_125_ABS_E5_CD_2021_(EMEA)_03.06.png)
1 |
1B000324 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/1/5/3/img/74153.jpg)
2 |
070620 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/8/img/63798.jpg)
3 |
005967 - CLIPS S00596700 More informationQuantity required : 1 |
||||||
|
4 |
1C005588 - MANCHON COMMANDE ACCELERATEUR COMPLET More informationQuantity required : 1 |
||||||
|
5 |
1R000514 - KIT DE POIGNEES More informationQuantity required : 1 |
||||||
|
6 |
669122 - TRANSMISSION DE GAZ More informationQuantity required : 1 |
||||||
|
7 |
669121 - TRANSMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
8 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440 More informationQuantity required : 2 |
||||||
|
9 |
675571 - EL!MENT COLL. More informationQuantity required : 1 |
||||||
|
10 |
1B008204 - BORNE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/6/2/8/img/75628.jpg)
11 |
1B000604 - VIS More informationQuantity required : 2 |
||||||
|
12 |
CM089903 - MAITRE CYLINDRE DROITE More informationQuantity required : 1 |
||||||
|
13 |
1C000155 - LEVIER FREIN More informationQuantity required : 1 |
||||||
|
14 |
CM089904 - MAITRE CYLINDRE More informationQuantity required : 1 |
||||||
|
15 |
1C000156 - LEVIER FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/7/img/66307.jpg)
16 |
298729 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/7/img/72907.jpg)
17 |
CM006905 - RESSOT More informationQuantity required : 1 |
