Vehicle Exploded View - VESPA VESPA 946 125 VESPA 946 125 ABS E5 CD 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

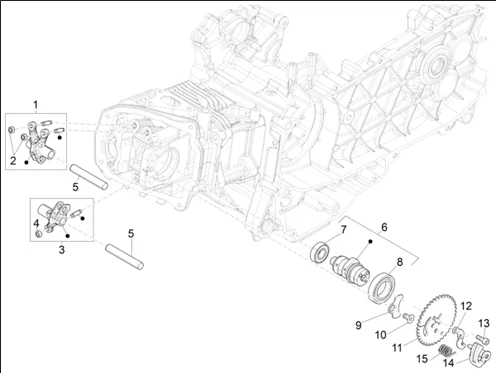

Moteur : 01.11 GROUPE SUPPORT BALANCIERS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1203/VESPA_946_125_ABS_E5_CD_2021_(EMEA)_01.11.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/6/2/3/img/204623.jpg)
1 |
1A019798R - CULBUTEUR D'ADMISSION More informationQuantity required : 1 |
||||||
2 |
880519 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/2/5/img/127225.jpg)
3 |
EXHAUST ROCKER "PIAGGIO GENUINE PART" 125 FLY 3V, LIBERTY 3V, VESPA LX 3V, PRIMAVERA 3V, VESPA-S 3V -1A003238R- More informationQuantity required : 1 |
||||||
|
4 |
880519 - ECROU More informationQuantity required : 2 |
||||||
|
5 |
B014047 - AXE DU CULBUTEURS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/2/9/img/127229.jpg)
6 |
1A0035075 - ARBRE A CAMES More informationQuantity required : 1 |
||||||
|
7 |
83029R - ROULEMENT 12.28.8 More informationQuantity required : 1 |
||||||
|
8 |
83030R - ROULEMENT 25.42.9 More informationQuantity required : 1 |
||||||
|
9 |
B013836 - PLAQUE ARBRE A CAMES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/7/0/img/127170.jpg)
10 |
1A003919 - VIS More informationQuantity required : 1 |
||||||
|
11 |
B018675 - COURONNE DENTEE More informationQuantity required : 1 |
||||||
|
12 |
B017933 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
13 |
B016474 - BOULON More informationQuantity required : 2 |
||||||
|
14 |
CM266201 - MASSELOTTE More informationQuantity required : 1 |
||||||
|
14 |
CM266202 - MASSELOTTE More informationQuantity required : 1 |
||||||
|
14 |
CM266203 - MASSELOTTE More informationQuantity required : 1 |
||||||
|
15 |
B014903 - RESSORT More informationQuantity required : 1 |
All the exploded views of this vehicle
-
-
