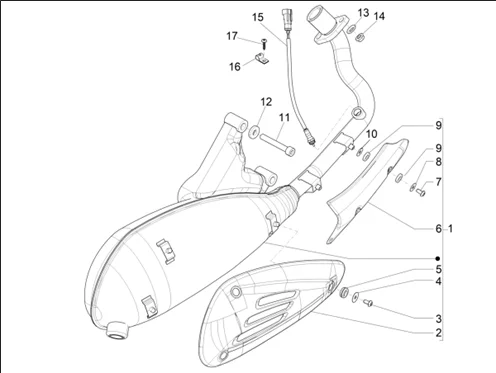

Vehicle Exploded View - VESPA VESPA 946 125 VESPA 946 125 ABS E5 CD 2021 (EMEA) VESPA

Moteur : 01.42 SILENCIEUX
Silencieux
Search
1A0180405 - POT D'ECHAPPEMENT AVEC PROTECTION

1
P2R reference P2R reference 204982
Maker reference Maker reference 1A0180405

1A0180405 - POT D'ECHAPPEMENT AVEC PROTECTION

More information

Quantity required : 1

1A0048735 - PLAQUE DE POT

2
P2R reference P2R reference 127268
Maker reference Maker reference 1A0048735

1A0048735 - PLAQUE DE POT

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -651014

3
P2R reference P2R reference 68173
Maker reference Maker reference 651014

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -651014

More information

Quantity required : 3

844927 - RONDELLE

4
P2R reference P2R reference 93011
Maker reference Maker reference 844927

844927 - RONDELLE

More information

Quantity required : 3

841782 - PASSE CABLE

5
P2R reference P2R reference 69204
Maker reference Maker reference 841782

841782 - PASSE CABLE

More information

Quantity required : 3

1A019495 - PROTECTION

6
P2R reference P2R reference 204983
Maker reference Maker reference 1A019495

1A019495 - PROTECTION

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -651014

7
P2R reference P2R reference 68173
Maker reference Maker reference 651014

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -651014

More information

Quantity required : 2

EXHAUST FLAT WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -827526

8
P2R reference P2R reference 68676
Maker reference Maker reference 827526

EXHAUST FLAT WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -827526

More information

Quantity required : 2

876879 - ENTRETOISE

9
P2R reference P2R reference 70637
Maker reference Maker reference 876879

876879 - ENTRETOISE

More information

Quantity required : 4

WATER PUMP SHIM WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE 50 CC 2 stroke 287073

10
P2R reference P2R reference 66179
Maker reference Maker reference 287073

WATER PUMP SHIM WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE 50 CC 2 STROKE 287073

More information

Quantity required : 2

872997 - VIS M8X55

11
P2R reference P2R reference 70457
Maker reference Maker reference 872997

872997 - VIS M8X55

More information

Quantity required : 2

709012 - RONDELLE

12
P2R reference P2R reference 68488
Maker reference Maker reference 709012

709012 - RONDELLE

More information

Quantity required : 2

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187

13
P2R reference P2R reference 69107
Maker reference Maker reference 834187

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187

More information

Quantity required : 2

NUT - TO HEAD/EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -436947

14
P2R reference P2R reference 66509
Maker reference Maker reference 436947

NUT - TO HEAD/EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -436947

More information

Quantity required : 2

1A014335 - LAMBDA SENSOR

15
P2R reference P2R reference 171615
Maker reference Maker reference 1A014335

1A014335 - LAMBDA SENSOR

More information

Quantity required : 1

643451 - COLLIER.

16
P2R reference P2R reference 86608
Maker reference Maker reference 643451

643451 - COLLIER.

More information

Quantity required : 1

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793

17
P2R reference P2R reference 66092
Maker reference Maker reference 270793

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793

More information

Quantity required : 1
