Vehicle Exploded View - VESPA VESPA 946 125 VESPA 946 125 ABS E5 CD 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

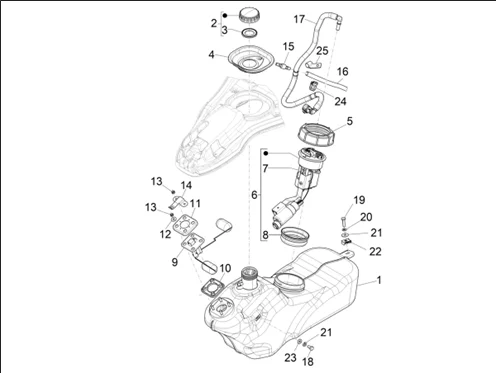

Châssis - parties plastiques - carrosseries : 02.47 RESERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1203/VESPA_946_125_ABS_E5_CD_2021_(EMEA)_02.47.png)
1 |
1B008881 - RESERVOIR DE CARBURANT COMPLET. More informationQuantity required : 1 |
||||||
|
2 |
1B000184 - BOUCHON RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/0/7/img/68307.jpg)
3 |
656021 - JOINT More informationQuantity required : 1 |
||||||
|
4 |
1B000259 - CUVETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/3/img/67133.jpg)
5 |
576546 - ECROU POMPE More informationQuantity required : 1 |
||||||
|
6 |
1R000537 - FUEL PUMP WITH GASKET More informationQuantity required : 1 |
||||||
|
7 |
639357 - FILTRE POMPE ELECTRIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/8/1/img/127181.jpg)
8 |
FUEL GAUGE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -656003 More informationQuantity required : 1 |
||||||
|
9 |
680123 - INDICATEUR More informationQuantity required : 1 |
||||||
|
10 |
781091 - JOINT More informationQuantity required : 1 |
||||||
|
11 |
1B000516 - GUARNIZIONE INDICATORE DI LIVELLO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/2/img/65682.jpg)
12 |
097733 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/8/4/img/111084.jpg)
13 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTERS AND APE -804457 More informationQuantity required : 4 |
||||||
|
14 |
1B000427 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
15 |
959591 - RACCORD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/2/img/72862.jpg)
16 |
FUEL HOSE (5X10) L1060 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -CM001432 More informationQuantity required : 1 |
||||||
|
17 |
1B001423 - TUYAU POUR CARBURATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/7/img/65637.jpg)
18 |
031086 - VIS S03108600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
19 |
031091 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
20 |
016406 - RONDELLE S01640600 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/8/img/65368.jpg)
21 |
013950 - RONDELLE S01395000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
22 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/5/img/63805.jpg)
23 |
006175 - RONDELLE S00617500 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/0/img/72910.jpg)
24 |
CM006910 - RESSORT More informationQuantity required : 1 |
||||||
|
25 |
675126 - BANDE More informationQuantity required : 1 |
