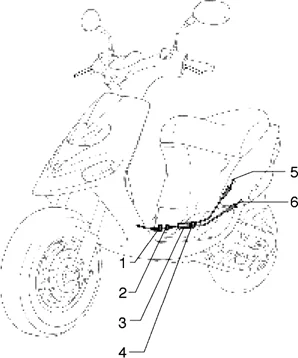

Vehicle Exploded View - GILERA STALKER 50 1998-2005 GILERA

Transmisisons : T36 TRANSMISSION GAZ
Transmission gaz
Search
SPLITTER UPPER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 stroke -271977-

1
P2R reference P2R reference 66109
Maker reference Maker reference 271977

SPLITTER UPPER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -271977-

More information

Quantity required : 1
CASIND END FOR DISPATCHER "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTERS 50cc 2 stroke -269572-

2
P2R reference P2R reference 66084
Maker reference Maker reference 269572

CASIND END FOR DISPATCHER "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTERS 50CC 2 STROKE -269572-

More information

Quantity required : 1
THROTTLE CONTROL SPLITTER "PIAGGIO GENUINE PART" 50 ZIP, FLY, LIBERTY, NRG/GILERA 50 STALKER, RUNNER (3 PARTS KIT WITHOUT PROTECTIONS) -269571-

3
P2R reference P2R reference 66083
Maker reference Maker reference 269571

THROTTLE CONTROL SPLITTER "PIAGGIO GENUINE PART" 50 ZIP, FLY, LIBERTY, NRG/GILERA 50 STALKER, RUNNER (3 PARTS KIT WITHOUT PROTECTIONS) -269571-

More information

Quantity required : 1
SPLITTER LOWER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 stroke -271976-

4
P2R reference P2R reference 66108
Maker reference Maker reference 271976

SPLITTER LOWER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -271976-

More information

Quantity required : 1
THROTTLE CABLE KIT (Dispatcher to carb ) "PIAGGIO GENUINE PART" 50 ZIP RST NRG EXTREME/GILERA 50 STALKER -268402-

5
P2R reference P2R reference 77200
Maker reference Maker reference 268402

THROTTLE CABLE KIT (DISPATCHER TO CARB ) "PIAGGIO GENUINE PART" 50 ZIP RST NRG EXTREME/GILERA 50 STALKER -268402-

More information

Quantity required : 1
THROTTLE TRANSMISSION CABLE "PIAGGIO GENUINE PART" (FROM SPLITTER TO CARB) "PIAGGIO GENUINE PART" GILERA 50 STALKER -599381-

5
P2R reference P2R reference 82509
Maker reference Maker reference 599381

THROTTLE TRANSMISSION CABLE "PIAGGIO GENUINE PART" (FROM SPLITTER TO CARB) "PIAGGIO GENUINE PART" GILERA 50 STALKER -599381-

More information

Quantity required : 1
TRANSMISSION CABLE KIT- THROTTLE (FROM DISPATCHER TO OIL PUMP) "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, TYPHOON 2012>/GILERA 50 STALKER -268403-

6
P2R reference P2R reference 66071
Maker reference Maker reference 268403

TRANSMISSION CABLE KIT- THROTTLE (FROM DISPATCHER TO OIL PUMP) "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, TYPHOON 2012>/GILERA 50 STALKER -268403-

More information

Quantity required : 1
THROTTLE CABLE KIT (FROM DISPATCHER TO OIL PUMP) "PIAGGIO GENUINE PART" 50 LIBERTY, NRG, ZIP/GILERA 50 STALKER, RUNNER -560448-

6
P2R reference P2R reference 79717
Maker reference Maker reference 560448

THROTTLE CABLE KIT (FROM DISPATCHER TO OIL PUMP) "PIAGGIO GENUINE PART" 50 LIBERTY, NRG, ZIP/GILERA 50 STALKER, RUNNER -560448-

More information

Quantity required : 1
