Vehicle Exploded View - GILERA STALKER 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

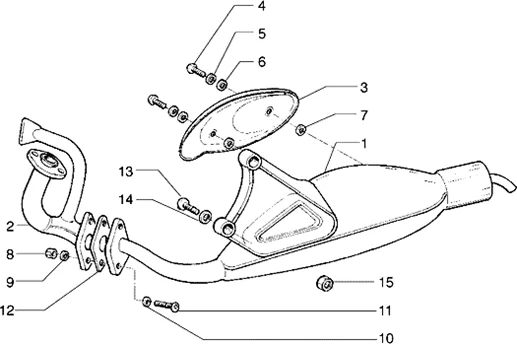

Moteur : T17 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/653/Stalker_1998-2005_T17.PNG)
1 |
479753 - POT ECHAP STALKER More informationQuantity required : 1 |
|||||||||
|
2 |
479756 - RACCORD ECHAP More informationQuantity required : 1 |
|||||||||
|
2 |
483221 - RACCORD ECHAPPEMENT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/7/5/0/img/92750.jpg)
2 |
EXHAUST PIPE "PIAGGIO GENUINE PART" 50 NRG MC2, NRG EXTREME/GILERA 50 STALKER, RUNNER -827197- More informationQuantity required : 1 |
|||||||||
|
3 |
479301 - PROTECTION ECHAP More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/3/img/65443.jpg)
4 |
018575 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/4/0/img/66440.jpg)
4 |
433800 - BOULON More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
5 |
016405 - RONDELLE S01640500 More informationQuantity required : 2 |
|||||||||
|
6 |
003055 - RONDELLE More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/7/img/63837.jpg)
7 |
006965 - RONDELLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/8/3/0/img/86830.JPG)
8 |
648349 - ECROU More informationQuantity required : 2 |
|||||||||
|
8 |
648349 - ECROU More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
8 |
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
9 |
016406 - RONDELLE S01640600 More informationQuantity required : 2 |
|||||||||
|
10 |
016406 - RONDELLE S01640600 More informationQuantity required : 2 |
|||||||||
|
10 |
709003 - RONDELLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/0/img/65640.jpg)
11 |
031089 - BOULON S03108900 More informationQuantity required : 1 |
|||||||||
|
11 |
436502 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/0/6/9/img/77069.jpg)
12 |
259310 - JOINT ECHPT SFERA 80 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/0/6/6/img/77066.jpg)
12 |
GASKET- FROM PIPE TO EXHAUST MAIN BODY "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 1995>1999 -259198- More informationQuantity required : 1 |
|||||||||
|
13 |
431740 - BOULON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/5/5/img/69355.jpg)
13 |
SCREW - FOR EXHAUST 75X8 "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -845591- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
14 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187- More informationQuantity required : 1 |
|||||||||
|
14 |
431744 - RONDELLE More informationQuantity required : 2 |
|||||||||
|
15 |
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245- More informationQuantity required : 1 |
|||||||||
|
15 |
431744 - RONDELLE More informationQuantity required : 2 |
|||||||||
