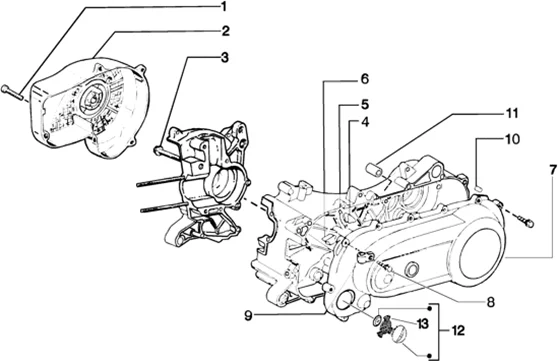

Vehicle Exploded View - GILERA STALKER 50 1998-2005 GILERA

Moteur : T6 COUVERCLE D'EMBRAYAGE-COUVERCLE LIMAÇON
Couvercle d'embrayage-Couvercle limaçon
Search
SCREW - 5X21 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015856-

1
P2R reference P2R reference 65399
Maker reference Maker reference 0158565

SCREW - 5X21 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015856-

More information

Quantity required : 4
286935 - CARTER VENTILATEUR

2
P2R reference P2R reference 77525
Maker reference Maker reference 286935

286935 - CARTER VENTILATEUR

More information

Quantity required : 1
IGNITION FLYWHEEL COVER "PIAGGIO GENUINE PART" COMMUN A TOUTE LA GAMME SCOOTER 50 CC 2 stroke -833817-

2
P2R reference P2R reference 69089
Maker reference Maker reference 833817

IGNITION FLYWHEEL COVER "PIAGGIO GENUINE PART" COMMUN A TOUTE LA GAMME SCOOTER 50 CC 2 STROKE -833817-

More information

Quantity required : 1
487890 - COUVERCLE

2
P2R reference P2R reference 66763
Maker reference Maker reference 487890

487890 - COUVERCLE

More information

Quantity required : 1
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -B017632-

3
P2R reference P2R reference 72769
Maker reference Maker reference B017632

SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -B017632-

More information

Quantity required : 8
286207 - TAMPON

4
P2R reference P2R reference 66166
Maker reference Maker reference 286207

286207 - TAMPON

More information

Quantity required : 1
286206 - PLAQUETTE

5
P2R reference P2R reference 77510
Maker reference Maker reference 286206

286206 - PLAQUETTE

More information

Quantity required : 1
463872 - TAMPON BEQUILLE

6
P2R reference P2R reference 66537
Maker reference Maker reference 463872

463872 - TAMPON BEQUILLE

More information

Quantity required : 1
TRANSMISSION COVER "PIAGGIO GENUINE PART" 50 GILERA STALKER -4822975-

7
P2R reference P2R reference 78965
Maker reference Maker reference 4822975

TRANSMISSION COVER "PIAGGIO GENUINE PART" 50 GILERA STALKER -4822975-

More information

Quantity required : 1
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838-

8
P2R reference P2R reference 66367
Maker reference Maker reference 414838

SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838-

More information

Quantity required : 14
216983 - COLLIER

9
P2R reference P2R reference 65927
Maker reference Maker reference 216983

216983 - COLLIER

More information

Quantity required : 1
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956-

10
P2R reference P2R reference 72696
Maker reference Maker reference B015956

CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956-

More information

Quantity required : 2
KICK STARTER BUSH "PIAGGIO GENUINE PART" 50 FLY 2 stroke, LIBERTY 2 stroke, NRG, TYPHOON, VESPA LX 2 stroke/GILERA 50 STALKER, RUNNER -286209-

11
P2R reference P2R reference 66167
Maker reference Maker reference 286209

KICK STARTER BUSH "PIAGGIO GENUINE PART" 50 FLY 2 STROKE, LIBERTY 2 STROKE, NRG, TYPHOON, VESPA LX 2 STROKE/GILERA 50 STALKER, RUNNER -286209-

More information

Quantity required : 1
TRANSMISSION HOUSING COVER "PIAGGIO GENUINE PART" PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD -848860-

12
P2R reference P2R reference 69583
Maker reference Maker reference 848860

TRANSMISSION HOUSING COVER "PIAGGIO GENUINE PART" PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD -848860-

More information

Quantity required : 1
GAS RECIRCULATION BOX FILTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -826462-

13
P2R reference P2R reference 68601
Maker reference Maker reference 826462

GAS RECIRCULATION BOX FILTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -826462-

More information

Quantity required : 1
