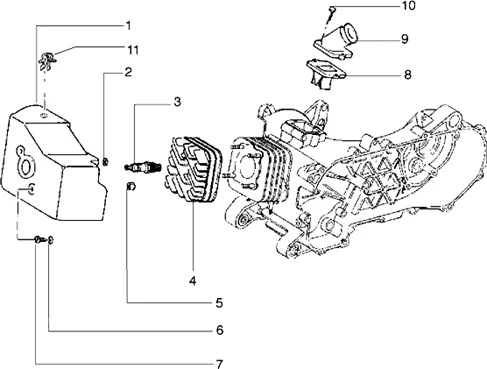

Vehicle Exploded View - GILERA STALKER 50 1998-2005 GILERA

Moteur : T5 CULASSE-COIFFRE ET RACCORD DE ADMISSION
Culasse-coiffre et raccord de admission
Search
433911 - COIFFE

1
P2R reference P2R reference 78609
Maker reference Maker reference 433911

433911 - COIFFE

More information

Quantity required : 1
CYLINDER AIR SHROUD "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTERS 50cc 2 stroke -845692-

1
P2R reference P2R reference 69364
Maker reference Maker reference 845692

CYLINDER AIR SHROUD "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTERS 50CC 2 STROKE -845692-

More information

Quantity required : 1
1A000352 - BOULON M6 X 22

2
P2R reference P2R reference 109062
Maker reference Maker reference 1A000352

1A000352 - BOULON M6 X 22

More information

Quantity required : 2
1A000352 - BOULON M6 X 22

2
P2R reference P2R reference 109062
Maker reference Maker reference 830487

1A000352 - BOULON M6 X 22

More information

Quantity required : 2
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245-

2
P2R reference P2R reference 66187
Maker reference Maker reference 288245

NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245-

More information

Quantity required : 2
SPARK PLUG CHAMPION P2M "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 cc 1989>2005 -438065-

3
P2R reference P2R reference 66522
Maker reference Maker reference 438065

SPARK PLUG CHAMPION P2M "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 CC 1989>2005 -438065-

More information

Quantity required : 1
SPARK PLUG CHAMPION RN2C "PIAGGIO GENUINE PART" 50 FLY 2stroke, LIBERTY 2stroke, NRG, TYPHOON, VESPA LX 2stroke/GILERA 50 STALKER, RUNNER -438034-

3
P2R reference P2R reference 66520
Maker reference Maker reference 438034

SPARK PLUG CHAMPION RN2C "PIAGGIO GENUINE PART" 50 FLY 2STROKE, LIBERTY 2STROKE, NRG, TYPHOON, VESPA LX 2STROKE/GILERA 50 STALKER, RUNNER -438034-

More information

Quantity required : 1
CYLINDER HEAD- "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTERS 50 CC 2 stroke -2865344-

4
P2R reference P2R reference 66174
Maker reference Maker reference 2865344

CYLINDER HEAD- "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTERS 50 CC 2 STROKE -2865344-

More information

Quantity required : 1
NUT - FOR CYLINDER HEAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50 CC 2 stroke -288531-

5
P2R reference P2R reference 66194
Maker reference Maker reference 288531

NUT - FOR CYLINDER HEAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50 CC 2 STROKE -288531-

More information

Quantity required : 2
078307 - RONDELLE

6
P2R reference P2R reference 65664
Maker reference Maker reference 0783075

078307 - RONDELLE

More information

Quantity required : 2
1A003108 - VIS

7
P2R reference P2R reference 109085
Maker reference Maker reference 1A003108

1A003108 - VIS

More information

Quantity required : 2
1A003108 - VIS

7
P2R reference P2R reference 109085
Maker reference Maker reference 0083755

1A003108 - VIS

More information

Quantity required : 2
REED VALVE "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 CC 2 stroke (FRAME N° RECOMMENDED) -82775R-

8
P2R reference P2R reference 68692
Maker reference Maker reference 82775R

REED VALVE "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 CC 2 STROKE (FRAME N° RECOMMENDED) -82775R-

More information

Quantity required : 1
417260 - RACCORD ADMI

9
P2R reference P2R reference 78407
Maker reference Maker reference 417260

417260 - RACCORD ADMI

More information

Quantity required : 1
INTAKE MANIFOLD "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, NRG, TYPHOON, ZIP/VESPA 50 LX/GILERA 50 RUNNER, STALKER/APRILIA 50 SPORT-CITY, SR -1A008824-

9
P2R reference P2R reference 152746
Maker reference Maker reference 1A008824

INTAKE MANIFOLD "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, NRG, TYPHOON, ZIP/VESPA 50 LX/GILERA 50 RUNNER, STALKER/APRILIA 50 SPORT-CITY, SR -1A008824-

More information

Quantity required : 1
1A000352 - BOULON M6 X 22

10
P2R reference P2R reference 109062
Maker reference Maker reference 1A000352

1A000352 - BOULON M6 X 22

More information

Quantity required : 1
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774-

10
P2R reference P2R reference 72720
Maker reference Maker reference B016774

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774-

More information

Quantity required : 2
1A000352 - BOULON M6 X 22

10
P2R reference P2R reference 109062
Maker reference Maker reference 830487

1A000352 - BOULON M6 X 22

More information

Quantity required : 1
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774-

10
P2R reference P2R reference 72720
Maker reference Maker reference 414837

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774-

More information

Quantity required : 2
140435 - RESSORT

11
P2R reference P2R reference 65739
Maker reference Maker reference 140435

140435 - RESSORT

More information

Quantity required : 1
431026 - JOINT (PAYS-BAS)

12
P2R reference P2R reference 78549
Maker reference Maker reference 431026

431026 - JOINT (PAYS-BAS)

More information

Quantity required : 1
