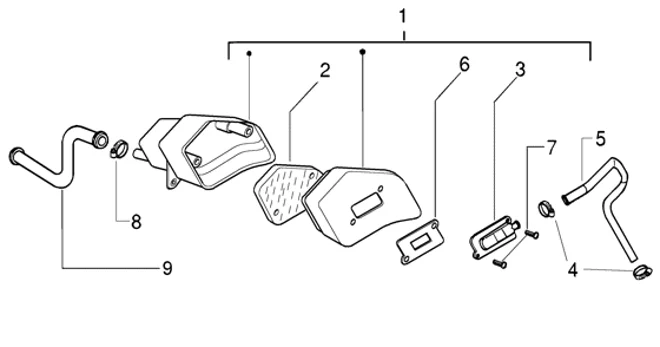

Vehicle Exploded View - GILERA STALKER 50 1998-2005 GILERA

Moteur : T16/A BOITII AIR SECONDAIRE EURO
Boitii air secondaire euro
Search
EXHAUST GAZ RECIRCULATION UNIT "PIAGGIO GENUINE PART" COMMUN A LA GAMME SCOOTER 2 stroke -8318595-

1
P2R reference P2R reference 139423
Maker reference Maker reference 8318595

EXHAUST GAZ RECIRCULATION UNIT "PIAGGIO GENUINE PART" COMMUN A LA GAMME SCOOTER 2 STROKE -8318595-

More information

Quantity required : 1
RECIRCULATION BOX "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 stroke -486942-

2
P2R reference P2R reference 66715
Maker reference Maker reference 486942

RECIRCULATION BOX "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -486942-

More information

Quantity required : 1
827209 - COUVERCLE

3
P2R reference P2R reference 68657
Maker reference Maker reference 827209

827209 - COUVERCLE

More information

Quantity required : 1
HOSE CLAMP FOR GAS RECIRCULATION BOX "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER 50 CC 2 stroke -827444-

4
P2R reference P2R reference 68672
Maker reference Maker reference 827444

HOSE CLAMP FOR GAS RECIRCULATION BOX "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER 50 CC 2 STROKE -827444-

More information

Quantity required : 2
PIPE - FROM EXHAUST to GAZ RECYCLING BOX "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 stroke -833740-

5
P2R reference P2R reference 69084
Maker reference Maker reference 833740

PIPE - FROM EXHAUST TO GAZ RECYCLING BOX "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -833740-

More information

Quantity required : 1
S.A.S. DIAPHRAGM "PIAGGIO GENUINE PART" 50 ZIP 4 stroke, FLY 4 stroke, LIBERTY 4 stroke, VESPA LX 4 stroke -82758R-

6
P2R reference P2R reference 68681
Maker reference Maker reference 82758R

S.A.S. DIAPHRAGM "PIAGGIO GENUINE PART" 50 ZIP 4 STROKE, FLY 4 STROKE, LIBERTY 4 STROKE, VESPA LX 4 STROKE -82758R-

More information

Quantity required : 1
015597 - VIS S01559700

7
P2R reference P2R reference 65385
Maker reference Maker reference 0155975

015597 - VIS S01559700

More information

Quantity required : 2
CM001905 - COLLIER

8
P2R reference P2R reference 72867
Maker reference Maker reference CM001905

CM001905 - COLLIER

More information

Quantity required : 1
827208 - TUBE

9
P2R reference P2R reference 68656
Maker reference Maker reference 827208

827208 - TUBE

More information

Quantity required : 1
