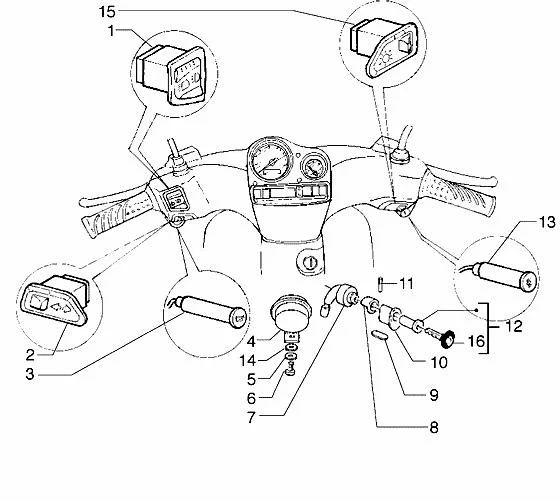

Vehicle Exploded View - GILERA STALKER 50 1998-2005 GILERA

Connexions électriques : T41 DISPOSITIFS ELECTRIQUES
Dispositifs electriques
Search
HEADLIGHT SELECTOR SWITCH "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, NRG, TYPHOON, ZIP/GILERA 50 STALKER, RUNNER -642968-

1
P2R reference P2R reference 67987
Maker reference Maker reference 642968

HEADLIGHT SELECTOR SWITCH "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, NRG, TYPHOON, ZIP/GILERA 50 STALKER, RUNNER -642968-

More information

Quantity required : 1
TURN SIGNAL SWITCH "PIAGGIO GENUINE PART" 50 ZIP, TYPHOON, FLY, LYBERTY, 125-250-400 MP3, BEVERLY, X-EVO, X8/GILERA 50 STALKER, RUNNER/APRILIA 50 SR -6426795 -

2
P2R reference P2R reference 67984
Maker reference Maker reference 642679

TURN SIGNAL SWITCH "PIAGGIO GENUINE PART" 50 ZIP, TYPHOON, FLY, LYBERTY, 125-250-400 MP3, BEVERLY, X-EVO, X8/GILERA 50 STALKER, RUNNER/APRILIA 50 SR -6426795 -

More information

Quantity required : 1
HORN SWITCH "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON, NRG, FFY, ZIP, 125-250-500 X-EVO, X8, X9, BEVERLY/GILERA 50 STALKER, RUNNER/APRILIA 125-250-400-500 SCARABEO-LIGHT . LEFT -58058R--

3
P2R reference P2R reference 67177
Maker reference Maker reference 58058R

HORN SWITCH "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON, NRG, FFY, ZIP, 125-250-500 X-EVO, X8, X9, BEVERLY/GILERA 50 STALKER, RUNNER/APRILIA 125-250-400-500 SCARABEO-LIGHT . LEFT -58058R--

More information

Quantity required : 1
HORN "PIAGGIO GENUINE PART" 125 MP3, VESPA LX, PRIMAVERA, SPRINT/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -58034R-

4
P2R reference P2R reference 67172
Maker reference Maker reference 58034R

HORN "PIAGGIO GENUINE PART" 125 MP3, VESPA LX, PRIMAVERA, SPRINT/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -58034R-

More information

Quantity required : 1
CM071804 - AVERTISSEUR

4
P2R reference P2R reference 95609
Maker reference Maker reference CM071804

CM071804 - AVERTISSEUR

More information

Quantity required : 1
016406 - RONDELLE S01640600

5
P2R reference P2R reference 65416
Maker reference Maker reference 016406

016406 - RONDELLE S01640600

More information

Quantity required : 1
015558 - VIS

6
P2R reference P2R reference 65380
Maker reference Maker reference 015558

015558 - VIS

More information

Quantity required : 1
IGNITION KEY SWITCH 4 POLES "PIAGGIO GENUINE PART" PIAGGIO 50 NRG, TYPHOON, ZIP RST/GILERA 50 STALKER OLD MODEL -580639-

7
P2R reference P2R reference 81451
Maker reference Maker reference 580639

IGNITION KEY SWITCH 4 POLES "PIAGGIO GENUINE PART" PIAGGIO 50 NRG, TYPHOON, ZIP RST/GILERA 50 STALKER OLD MODEL -580639-

More information

Quantity required : 1
KEY LOCK PLATE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -178559-

9
P2R reference P2R reference 65784
Maker reference Maker reference 178559

KEY LOCK PLATE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -178559-

More information

Quantity required : 1
LOCK BODY "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2009, NRG 1998>2004, ZIP 1995>1999125 PX/GILERA 50 STALKER -2977775-

10
P2R reference P2R reference 77948
Maker reference Maker reference 297777

LOCK BODY "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2009, NRG 1998>2004, ZIP 1995>1999125 PX/GILERA 50 STALKER -2977775-

More information

Quantity required : 1
018515 - VIS S01851500

11
P2R reference P2R reference 65435
Maker reference Maker reference 018515

018515 - VIS S01851500

More information

Quantity required : 1
LOCK CYLINDER WITH KEYS "PIAGGIO GENUINE PART" GILERA 50 STALKER -573785-

12
P2R reference P2R reference 80270
Maker reference Maker reference 573785

LOCK CYLINDER WITH KEYS "PIAGGIO GENUINE PART" GILERA 50 STALKER -573785-

More information

Quantity required : 1
ELECTRIC STARTER SWITCH "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON, NRG, FLY, ZIP, 125 FLY, LIBERTY, 125-250-400 X8, X9, X-EVO, BEVERLY/GILERA 50 STALKER/APRILIA 125-300-500 SCARABEO -58057R-

13
P2R reference P2R reference 67176
Maker reference Maker reference 58057R

ELECTRIC STARTER SWITCH "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON, NRG, FLY, ZIP, 125 FLY, LIBERTY, 125-250-400 X8, X9, X-EVO, BEVERLY/GILERA 50 STALKER/APRILIA 125-300-500 SCARABEO -58057R-

More information

Quantity required : 1
003056 - RONDELLE

14
P2R reference P2R reference 63777
Maker reference Maker reference 003056

003056 - RONDELLE

More information

Quantity required : 1
LIGHTS SWITCH "PIAGGIO GENUINE PART" 125-250-500 X9, 125 HEXAGON/GILERA 50 STALKER -294340-

15
P2R reference P2R reference 66271
Maker reference Maker reference 294340

LIGHTS SWITCH "PIAGGIO GENUINE PART" 125-250-500 X9, 125 HEXAGON/GILERA 50 STALKER -294340-

More information

Quantity required : 1
COVER FOR DASHBOARD "PIAGGIO GENUINE PART" COMMON TO ALL RANGE -AP8127896-

15
P2R reference P2R reference 71636
Maker reference Maker reference AP8127896

COVER FOR DASHBOARD "PIAGGIO GENUINE PART" COMMON TO ALL RANGE -AP8127896-

More information

Quantity required : 1
574690 - CLE EBAUCHE

16
P2R reference P2R reference 80410
Maker reference Maker reference 574690

574690 - CLE EBAUCHE

More information

Quantity required : 1
