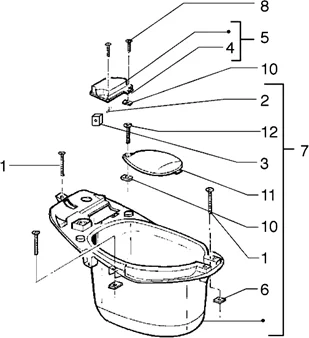

Vehicle Exploded View - GILERA STALKER 50 1998-2005 GILERA

Châssis : T22 PORTE CASQUE
Porte casque
Search
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249-

1
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249-

More information

Quantity required : 5
BODY PARTS MOUNTING RIVET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -182302-

2
P2R reference P2R reference 65802
Maker reference Maker reference 182302

BODY PARTS MOUNTING RIVET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -182302-

More information

Quantity required : 1
290405 - SUPPORT

3
P2R reference P2R reference 66242
Maker reference Maker reference 290405

290405 - SUPPORT

More information

Quantity required : 1
297446 - SILENTBLOC

4
P2R reference P2R reference 66300
Maker reference Maker reference 297446

297446 - SILENTBLOC

More information

Quantity required : 1
BATTERY COVER "PIAGGIO GENUINE PART" 50 STALKER -575993-

5
P2R reference P2R reference 80730
Maker reference Maker reference 575993

BATTERY COVER "PIAGGIO GENUINE PART" 50 STALKER -575993-

More information

Quantity required : 1
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

6
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 5
HELMET COMPARTMENT "PIAGGIO GENUINE PART" GILERA 50 STALKER 2000> -299100-

7
P2R reference P2R reference 78040
Maker reference Maker reference 299100

HELMET COMPARTMENT "PIAGGIO GENUINE PART" GILERA 50 STALKER 2000> -299100-

More information

Quantity required : 1
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 -

8
P2R reference P2R reference 66028
Maker reference Maker reference 258249

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 -

More information

Quantity required : 2
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410-

10
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410-

More information

Quantity required : 3
299317 - FOND COFFRE

11
P2R reference P2R reference 78056
Maker reference Maker reference 299317

299317 - FOND COFFRE

More information

Quantity required : 1
SCREW - 4,2x13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349-

12
P2R reference P2R reference 66035
Maker reference Maker reference 259349

SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349-

More information

Quantity required : 1
