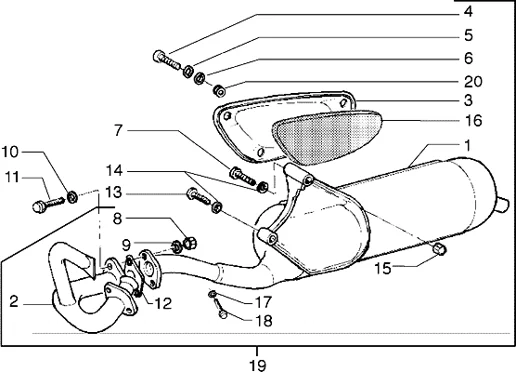

Vehicle Exploded View - GILERA STALKER 50 1998-2005 GILERA

Moteur : T17/A SILENCIEUX CATALYTIQUE
Silencieux catalytique
Search
826290 - POT D'ECHAPPEMENT COMPL.

1
P2R reference P2R reference 92734
Maker reference Maker reference 826290

826290 - POT D'ECHAPPEMENT COMPL.

More information

Quantity required : 1
EXHAUST "PIAGGIO GENUINE PART" GILERA 50 STALKER 2000>2011 (CATALYSED) -8739965-

1
P2R reference P2R reference 93184
Maker reference Maker reference 8739965

EXHAUST "PIAGGIO GENUINE PART" GILERA 50 STALKER 2000>2011 (CATALYSED) -8739965-

More information

Quantity required : 1
825681 - TUYAU ECHAPP.

2
P2R reference P2R reference 92696
Maker reference Maker reference 825681

825681 - TUYAU ECHAPP.

More information

Quantity required : 1
825783 - PROTECTION

3
P2R reference P2R reference 92703
Maker reference Maker reference 825783

825783 - PROTECTION

More information

Quantity required : 1
EXHAUST PROTECTION - "PIAGGIO GENUINE PART" 50 FLY, NRG, TYPHOON, ZIP/GILERA 50 STALKER/APRILIA 50 SR -830325-

3
P2R reference P2R reference 68909
Maker reference Maker reference 830325

EXHAUST PROTECTION - "PIAGGIO GENUINE PART" 50 FLY, NRG, TYPHOON, ZIP/GILERA 50 STALKER/APRILIA 50 SR -830325-

More information

Quantity required : 1
433800 - BOULON

4
P2R reference P2R reference 66440
Maker reference Maker reference 433800

433800 - BOULON

More information

Quantity required : 4
016405 - RONDELLE S01640500

5
P2R reference P2R reference 65415
Maker reference Maker reference 0164055

016405 - RONDELLE S01640500

More information

Quantity required : 4
825775 - RONDELLE

6
P2R reference P2R reference 92700
Maker reference Maker reference 825775

825775 - RONDELLE

More information

Quantity required : 4
SCREW - FOR EXHAUST 75x8 "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -845591-

7
P2R reference P2R reference 69355
Maker reference Maker reference 845591

SCREW - FOR EXHAUST 75X8 "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -845591-

More information

Quantity required : 1
648349 - ECROU

8
P2R reference P2R reference 86830
Maker reference Maker reference 648349
Replaced by référence Replaced by référence 78681

648349 - ECROU

More information

Quantity required : 2
648349 - ECROU

8
P2R reference P2R reference 86830
Maker reference Maker reference 436501
Replaced by référence Replaced by référence 78681

648349 - ECROU

More information

Quantity required : 2
016406 - RONDELLE S01640600

9
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

016406 - RONDELLE S01640600

More information

Quantity required : 2
709003 - RONDELLE

10
P2R reference P2R reference 164293
Maker reference Maker reference 709003

709003 - RONDELLE

More information

Quantity required : 2
436502 - VIS

11
P2R reference P2R reference 78682
Maker reference Maker reference 436502

436502 - VIS

More information

Quantity required : 2
GASKET- FROM PIPE TO EXHAUST MAIN BODY "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 1995>1999 -259198-

12
P2R reference P2R reference 77066
Maker reference Maker reference 259198

GASKET- FROM PIPE TO EXHAUST MAIN BODY "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 1995>1999 -259198-

More information

Quantity required : 1
844483 - VIS

13
P2R reference P2R reference 69321
Maker reference Maker reference 844483

844483 - VIS

More information

Quantity required : 1
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187-

14
P2R reference P2R reference 69107
Maker reference Maker reference 834187

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187-

More information

Quantity required : 2
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245-

15
P2R reference P2R reference 66187
Maker reference Maker reference 288245

NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245-

More information

Quantity required : 2
825584 - COUVERTURE

16
P2R reference P2R reference 92694
Maker reference Maker reference 825584

825584 - COUVERTURE

More information

Quantity required : 1
EXHAUST WASHER Ø10,2xØ15x2 FOR ALL THE RANGE -016195-

17
P2R reference P2R reference 65412
Maker reference Maker reference 0161955

EXHAUST WASHER Ø10,2XØ15X2 FOR ALL THE RANGE -016195-

More information

Quantity required : 1
EXHAUST SCREW/FLANGE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -433122-

18
P2R reference P2R reference 66433
Maker reference Maker reference 433122

EXHAUST SCREW/FLANGE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -433122-

More information

Quantity required : 1
826290 - POT D'ECHAPPEMENT COMPL.

19
P2R reference P2R reference 92734
Maker reference Maker reference 826290

826290 - POT D'ECHAPPEMENT COMPL.

More information

Quantity required : 1
FAIRLEAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -487665-

20
P2R reference P2R reference 66744
Maker reference Maker reference 487665

FAIRLEAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -487665-

More information

Quantity required : 1
EXHAUST BUSHING/WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -834643-

20
P2R reference P2R reference 92917
Maker reference Maker reference 834643

EXHAUST BUSHING/WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -834643-

More information

Quantity required : 4
825824 - ENTRETOISE

22
P2R reference P2R reference 92708
Maker reference Maker reference 825824

825824 - ENTRETOISE

More information

Quantity required : 4
