Vehicle Exploded View - APRILIA SR 50 H20 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

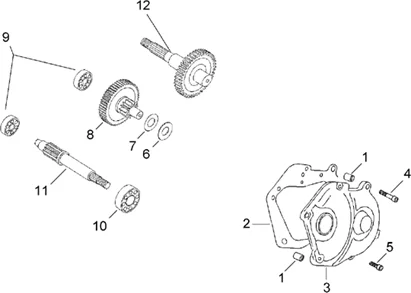

Moteur : 29.53 REDUCTION FINALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/577/SR_50_H20_1997-2000_29.53.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/0/2/img/55702.jpg)
1 |
AP8206170 - GOUPILLE COUVERCLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/0/1/img/55701.jpg)
2 |
AP8206163 - JOINT COUVERCLE More informationQuantity required : 1 |
||||||
3 |
AP8206112 - COUVERCLE TRANSMISSION More informationQuantity required : 1 |
||||||
|
4 |
AP8502567 - VIS More informationQuantity required : 4 |
||||||
|
5 |
AP8502564 - VIS More informationQuantity required : 5 |
||||||
|
6 |
AP8206195 - RONDELLE ACIER BLEU More informationQuantity required : 1 |
||||||
|
7 |
AP8206150 - RESSORT A GODET More informationQuantity required : 1 |
||||||
|
8 |
AP8206142 - ENGR.DOUBLE INTERM. More informationQuantity required : 1 |
||||||
|
8 |
AP8206530 - ENGR.DOUBLE INTERM. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/0/0/img/55700.jpg)
9 |
BEARING FOR TRANSMISSION REDUCER (30X9) "PIAGGIO GENUINE PART" APRILIA 50 RALLY, GULLIVER, SONIC, AMICO -AP8206159- More informationQuantity required : 2 |
||||||
|
10 |
AP8276046 - CUSCINETTO D.17X40X12 More informationQuantity required : 1 |
||||||
|
11 |
AP8206425 - ARBRE DE TRANSMISSION More informationQuantity required : 1 |
||||||
|
12 |
AP8206531 - ARBRE SORTIE More informationQuantity required : 1 |
