Vehicle Exploded View - APRILIA SR 50 H20 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

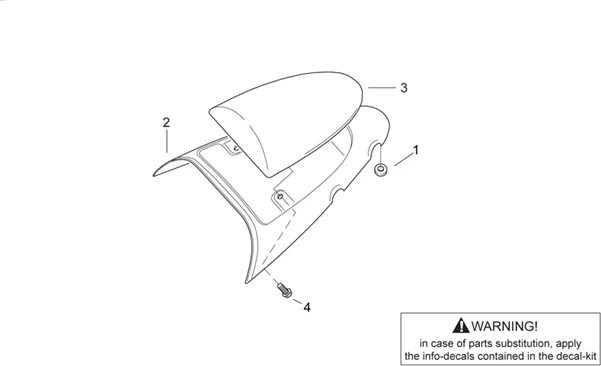

Chassis : 28.13 GROUPE SELLE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/577/SR_50_H20_1997-2000_28.13.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/6/img/71746.jpg)
1 |
RUBBER SPACER "PIAGGIO GENUINE PART" COMMON TO ALL APRILIA/MOTO-GUZZI MOTORBIKES -AP8144081- More informationQuantity required : 2 |
||||||
2 |
AP8239249 - COUVERCLE SELLE NOIR; More informationQuantity required : 1 |
||||||
|
2 |
AP8239078 - COUVERCLE SELLE, BLEU+DECALCO; More informationQuantity required : 1 |
||||||
|
2 |
AP8239400 - COUVERCLE SELLE, GRIS+DECALCO; More informationQuantity required : 1 |
||||||
|
2 |
AP8239729 - COUVERCLE SELLE, GRIS+DECALCO; More informationQuantity required : 1 |
||||||
|
3 |
AP8229192 - SELLE PASSAGER NOIRE; More informationQuantity required : 1 |
||||||
|
3 |
AP8229297 - SEL.PASS.ROUGE.FLUO; More informationQuantity required : 1 |
||||||
|
3 |
AP8229318 - SELLE PASSAGER JAUNE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
4 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 3 |
