Vehicle Exploded View - APRILIA SR 50 H20 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

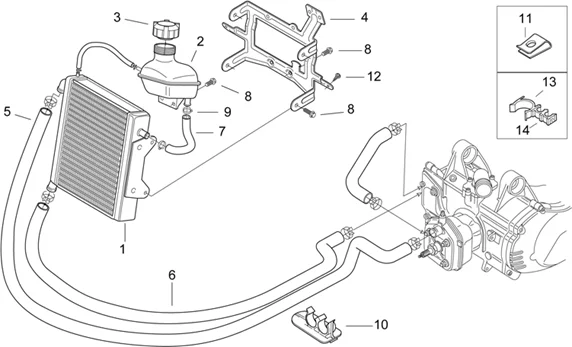

Chassis : 28.23 INSTALLATION REFROIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/577/SR_50_H20_1997-2000_28.23.PNG)
1 |
AP8202406 - RADIATORE GREZZO More informationQuantity required : 1 |
||||||
|
2 |
AP8238750 - VASE D'EXPANSION; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/1/6/img/45116.jpg)
3 |
AP8101912 - BOUCHON RADIATEUR SS RENIFLARD More informationQuantity required : 1 |
||||||
|
4 |
AP8232941 - SUPPORT RADIATEUR; More informationQuantity required : 1 |
||||||
|
5 |
AP8220452 - TUBE DE CULASSE RADIATEUR; More informationQuantity required : 1 |
||||||
|
6 |
AP8220451 - TUBE POMPE RADIATEUR; More informationQuantity required : 1 |
||||||
|
7 |
AP8220474 - TUY.VASE EXP.RAD.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
8 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/8/img/71198.jpg)
9 |
AP8102765 - COLLIER CLIC, BLANC More informationQuantity required : 2 |
||||||
|
10 |
AP8234218 - SUPPORTO TUBI ACQUA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
11 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
12 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 1 |
||||||
|
13 |
AP8201807 - GUIDE-CABLE More informationQuantity required : 2 |
||||||
|
14 |
AP8201808 - GUIDE-CABLE More informationQuantity required : 2 |
