Vehicle Exploded View - APRILIA SR 50 H20 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

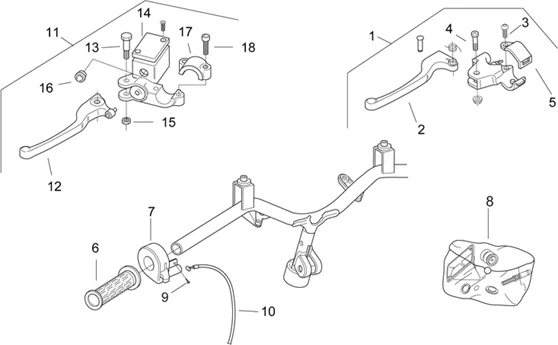

Chassis : 28.20 COMMANDES I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/577/SR_50_H20_1997-2000_28.20.PNG)
1 |
AP8218236 - LEVIER FREIN ARRIERE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/6/4/8/img/56648.jpg)
2 |
BRAKE LEVER "PIAGGIO GENUINE PART" APRILIA 50 SR 1996>1999 AR -AP8218274- More informationQuantity required : 1 |
||||||
|
3 |
AP8118472 - VIS; More informationQuantity required : 1 |
||||||
|
5 |
AP8218154 - CAVALIER LEVIER FREIN; More informationQuantity required : 1 |
||||||
|
6 |
AP8218361 - COUPLE MANETTES, JAUNE; More informationQuantity required : 1 |
||||||
|
6 |
GRIPS(PAIR) "PIAGGIO GENUINE PART" APRILIA 50 RALLYE, AMICO, GULLIVER, SR 1996> -AP8218275- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/8/img/72188.jpg)
7 |
CHOKE CONTROL "PIAGGIO GENUINE PART" APRILIA 50 RALLY, RX, SX, GULLIVER, AMICO, SR -AP8212529- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/4/4/2/img/56442.jpg)
8 |
MAINTENANCE KIT- FOR FRONT BRAKE CALIPER "PIAGGIO GENUINE PART" APRILIA 50 SR H2O, SONOC, 125 MOJITO -AP8213375- More informationQuantity required : 1 |
||||||
|
9 |
AP8150473 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/5/5/3/img/56553.jpg)
10 |
CHOKE TRANSMISSION CABLE "PIAGGIO GENUINE PART" APRILIA 50 RALLY, GULLIVER, SR -AP8214159- More informationQuantity required : 1 |
||||||
|
11 |
AP8213260 - MA?T.CYL. FREIN AR More informationQuantity required : 1 |
||||||
|
11 |
AP8213360 - MA?T.CYL. FREIN AR More informationQuantity required : 1 |
||||||
|
12 |
AP8218478 - LEVIER FREIN ALU; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/6/5/1/img/56651.jpg)
12 |
AP8218288 - LEVIER FREIN AVANT; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/6/img/71576.jpg)
13 |
AP8125757 - VIS LEVIER More informationQuantity required : 1 |
||||||
|
14 |
AP8213272 - COUVERCLE RESERVOIR More informationQuantity required : 1 |
||||||
|
15 |
AP8213298 - ECROU More informationQuantity required : 1 |
||||||
|
16 |
AP8113414 - HUBLOT POMPE FREIN More informationQuantity required : 1 |
||||||
|
17 |
AP8113637 - CAVALIER LEVIER FREIN More informationQuantity required : 1 |
||||||
|
18 |
AP8213299 - VIS CALOTTE More informationQuantity required : 2 |
