Vehicle Exploded View - APRILIA SR 50 H20 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

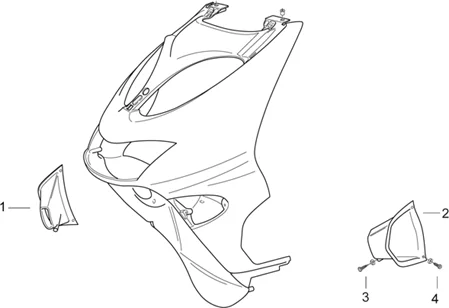

Chassis : 28.08 CARROSSERIE AV. IV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/577/SR_50_H20_1997-2000_28.08.PNG)
1 |
AP8239072 - PRISE D'AIR DTE PEINT GRISE; More informationQuantity required : 1 |
||||||
|
1 |
AP8239403 - PRISE D'AIR DTE PEINT NOIR; More informationQuantity required : 1 |
||||||
|
1 |
AP8239722 - PRISE D'AIR DTE P.GRISE+DEC.; More informationQuantity required : 1 |
||||||
|
1 |
AP8239733 - PRISE D'AIR DTE P.NOIR+DEC.; More informationQuantity required : 1 |
||||||
|
1 |
AP8248743 - PRISE D'AIR DTE NOI.SHIN.; More informationQuantity required : 1 |
||||||
|
1 |
AP8249713 - PRISE D'AIR D, NOIR MET.; More informationQuantity required : 1 |
||||||
|
2 |
AP8249715 - PRISE D'AIR GCHE NOIR MET.; More informationQuantity required : 1 |
||||||
|
2 |
AP8248671 - PRISE D'AIR GCHE NOI APRI.; More informationQuantity required : 1 |
||||||
|
2 |
AP8239734 - PRISE D'AIR GCHE P.NOIR+DEC.; More informationQuantity required : 1 |
||||||
|
2 |
AP8239404 - PRISE D'AIR GCHE PEINT NOIR; More informationQuantity required : 1 |
||||||
|
2 |
AP8239073 - PRISE D'AIR GCHE PEINT GRISE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
3 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
4 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298- More informationQuantity required : 4 |
