Vehicle Exploded View - APRILIA SR 50 H20 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

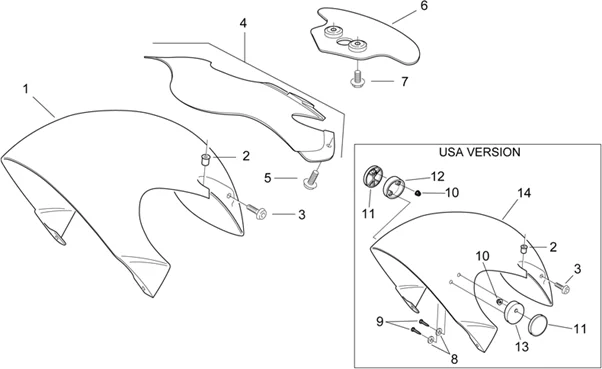

Chassis : 28.09 CARROSSERIE AV. V
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/577/SR_50_H20_1997-2000_28.09.PNG)
1 |
AP8226431 - G-BOUE AV BRUT R; More informationQuantity required : 1 |
||||||
|
1 |
AP8226432 - G-BOUE AV BRUT NOIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
2 |
NUT - WITH RUBBER INSERT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -AP8120531- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
3 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339- More informationQuantity required : 2 |
||||||
|
4 |
AP8258036 - COUVERCLE INF. TABLIER, NOIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
5 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
7 |
AP8152277 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/4/img/71804.JPG)
8 |
AP8150011 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
9 |
AP8150444 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
10 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
|
11 |
AP8224163 - CATADIOPTRE, AMBRE; More informationQuantity required : 2 |
||||||
|
12 |
AP8249104 - SUPPORT CATAD.AV.D.; More informationQuantity required : 1 |
||||||
|
13 |
AP8249105 - SUPPORT CATAD.AV.G.; More informationQuantity required : 1 |
||||||
|
14 |
AP8226678 - GDE-BOUE AV JAUNE CITRON; More informationQuantity required : 1 |
