Vehicle Exploded View - APRILIA SR 50 H20 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

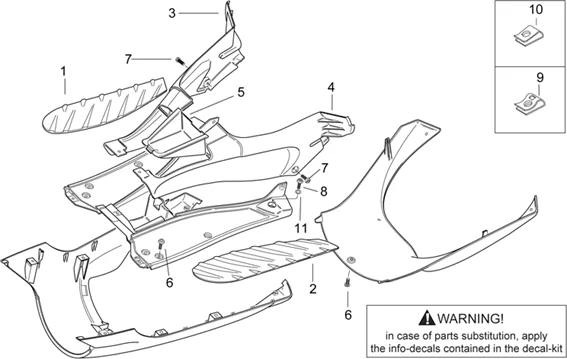

Chassis : 28.10 CARROSSERIE CENTRALE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/577/SR_50_H20_1997-2000_28.10.PNG)
1 |
AP8238514 - TAPIS DTE; More informationQuantity required : 1 |
||||||
|
1 |
AP8248665 - TAPIS D NOIR; More informationQuantity required : 1 |
||||||
|
2 |
AP8238515 - TAPIS GCHE; More informationQuantity required : 1 |
||||||
|
2 |
AP8248666 - TAPIS G NOIR; More informationQuantity required : 1 |
||||||
|
3 |
AP8249221 - TUNNEL DTE GRIS; More informationQuantity required : 1 |
||||||
|
3 |
AP8258040 - TUNNEL DTE, NOIR MET.; More informationQuantity required : 1 |
||||||
|
4 |
AP8258041 - TUNNEL GCHE, NOIR MET.; More informationQuantity required : 1 |
||||||
|
4 |
AP8249222 - TUNNEL GCHE GRIS More informationQuantity required : 1 |
||||||
|
5 |
AP8238507 - TROUSSE A OUTILS GRISE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
6 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
7 |
AP8152280 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
8 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/3/img/72143.jpg)
9 |
AP8201763 - CLIP POUR VIS TARAUD More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
10 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 3 |
||||||
|
11 |
AP8221046 - ENTRETOISE More informationQuantity required : 2 |
