Vehicle Exploded View - APRILIA SR 50 H20 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

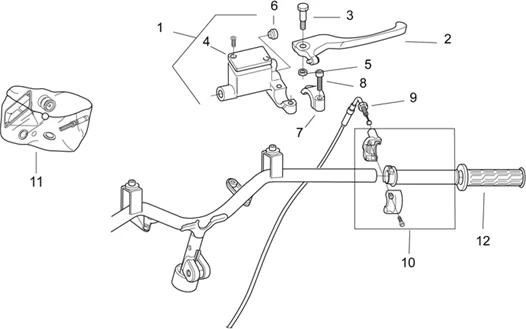

Chassis : 28.21 COMMANDES II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/577/SR_50_H20_1997-2000_28.21.PNG)
1 |
AP8213275 - MA?T. CYL. FREIN AV More informationQuantity required : 1 |
||||||
|
1 |
AP8213359 - MA?T. CYL. FREIN AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/6/5/1/img/56651.jpg)
2 |
AP8218288 - LEVIER FREIN AVANT; More informationQuantity required : 1 |
||||||
|
2 |
AP8218478 - LEVIER FREIN ALU; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/6/img/71576.jpg)
3 |
AP8125757 - VIS LEVIER More informationQuantity required : 1 |
||||||
|
4 |
AP8213272 - COUVERCLE RESERVOIR More informationQuantity required : 1 |
||||||
|
5 |
AP8213298 - ECROU More informationQuantity required : 1 |
||||||
|
6 |
AP8113414 - HUBLOT POMPE FREIN More informationQuantity required : 1 |
||||||
|
7 |
AP8113637 - CAVALIER LEVIER FREIN More informationQuantity required : 1 |
||||||
|
8 |
AP8213299 - VIS CALOTTE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/5/5/5/img/56555.jpg)
9 |
TRANSMISSION THROTTLE CABLE "PIAGGIO GENUINE PART" APRILIA 50 SR 1997>2001 -AP8214162- More informationQuantity required : 1 |
||||||
|
10 |
AP8218331 - COMMANDE GAZ SANS POIGNEE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/4/4/2/img/56442.jpg)
11 |
MAINTENANCE KIT- FOR FRONT BRAKE CALIPER "PIAGGIO GENUINE PART" APRILIA 50 SR H2O, SONOC, 125 MOJITO -AP8213375- More informationQuantity required : 1 |
||||||
|
12 |
GRIPS(PAIR) "PIAGGIO GENUINE PART" APRILIA 50 RALLYE, AMICO, GULLIVER, SR 1996> -AP8218275- More informationQuantity required : 1 |
||||||
|
12 |
AP8218361 - COUPLE MANETTES, JAUNE; More informationQuantity required : 1 |
