Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter 1000-1300 Pick-Van 1992-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

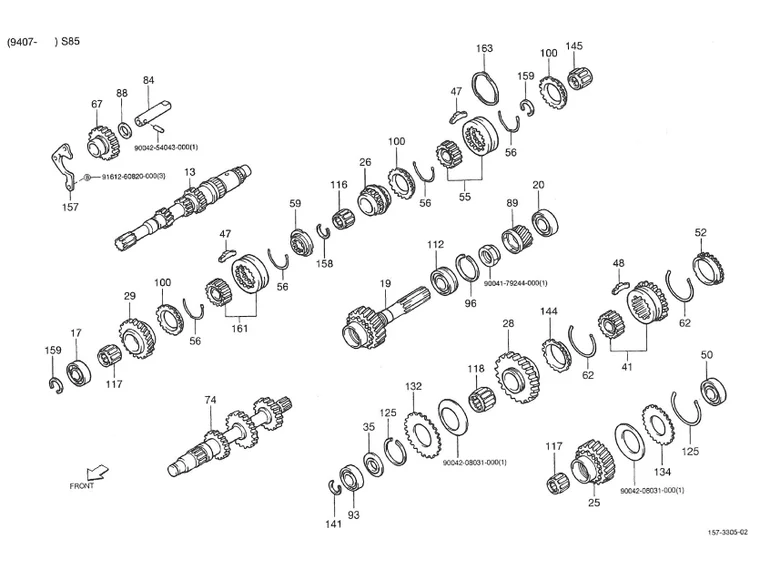

Transmission : 03.070 BOÎTE DE VITESSES - ENGRENAGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_03.070.PNG)
13 |
3331187520000 - ARBRE ENGR. More informationQuantity required : 1 |
||||||
|
13 |
3331197501000 - ARBRE ENGR. More informationQuantity required : 1 |
||||||
|
17 |
9004363222000 - ROULEMENT More informationQuantity required : 1 |
||||||
|
17 |
9004363246000 - ROULEMENT More informationQuantity required : 1 |
||||||
|
19 |
3332187527000 - ARBRE CHANGEM More informationQuantity required : 1 |
||||||
|
20 |
9004363226000 - ROULEMENT More informationQuantity required : 1 |
||||||
|
25 |
3333287511000 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
26 |
3333387401000 - ENGRENAGE 3 VIT More informationQuantity required : 1 |
||||||
|
26 |
3333387518000 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
28 |
3333587519000 - ENGRENAGE 1ERE More informationQuantity required : 1 |
||||||
|
28 |
3333587518000 - ENGRENAGE 1ERE More informationQuantity required : 1 |
||||||
|
29 |
3333687504000 - ENGRENAGE 5EME More informationQuantity required : 1 |
||||||
|
35 |
3334887508000 - RONDELLE More informationQuantity required : 1 |
||||||
|
41 |
3336087513000 - MOYEU More informationQuantity required : 1 |
||||||
|
47 |
3336687505000 - CLAVETTE More informationQuantity required : 3 |
||||||
|
48 |
3336587702000 - CLAVETTE More informationQuantity required : 6 |
||||||
|
50 |
9004363224000 - ROULEMENT More informationQuantity required : 1 |
||||||
|
52 |
3336987503000 - BAGUE More informationQuantity required : 1 |
||||||
|
55 |
3337087515000 - MOYEU More informationQuantity required : 1 |
||||||
|
55 |
3337087509000 - MOYEU More informationQuantity required : 1 |
||||||
|
56 |
3337187505000 - RESSORT More informationQuantity required : 4 |
||||||
|
59 |
3338587504000 - BAGUE More informationQuantity required : 1 |
||||||
|
62 |
3339187701000 - RESSORT More informationQuantity required : 2 |
||||||
|
67 |
3340287507000 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
74 |
3342187401000 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
74 |
3342187537000 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
84 |
3345187504000 - ARBRE ENGREN. More informationQuantity required : 1 |
||||||
|
88 |
3346287501000 - CONVERTISSEUR More informationQuantity required : 1 |
||||||
|
89 |
3348187531000 - ENGRENAGE COMPTEUR More informationQuantity required : 1 |
||||||
|
89 |
3348187537000 - ENGRENAGE COMPTEUR More informationQuantity required : 1 |
||||||
|
93 |
9710306204000 - ROULEMENT More informationQuantity required : 1 |
||||||
|
100 |
3336787507000 - BAGUE More informationQuantity required : 3 |
||||||
|
117 |
9004364119000 - ROULEMENT More informationQuantity required : 2 |
||||||
|
118 |
9004364034000 - ROULEMENT More informationQuantity required : 1 |
||||||
|
125 |
9004520107000 - CIRCLIPS More informationQuantity required : 2 |
||||||
|
132 |
3338687503000 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
132 |
3338687502000 - ENGRANAGE More informationQuantity required : 1 |
||||||
|
134 |
3338787503000 - ENGRANAGE More informationQuantity required : 1 |
||||||
|
141 |
9004520286000 - BAGUE More informationQuantity required : 1 |
||||||
|
141 |
9004520285000 - BAGUE More informationQuantity required : 1 |
||||||
|
141 |
9004520284000 - BAGUE More informationQuantity required : 1 |
||||||
|
141 |
9004520283000 - BAGUE More informationQuantity required : 1 |
||||||
|
141 |
9004520282000 - BAGUE More informationQuantity required : 1 |
||||||
|
141 |
9004520281000 - BAGUE More informationQuantity required : 1 |
||||||
|
141 |
9004520280000 - BAGUE More informationQuantity required : 1 |
||||||
|
141 |
9004520279000 - BAGUE More informationQuantity required : 1 |
||||||
|
144 |
3336887509000 - BAGUE More informationQuantity required : 1 |
||||||
|
145 |
9004364134000 - ROULEMENT More informationQuantity required : 1 |
||||||
|
157 |
3332687501000 - PLAQUE More informationQuantity required : 1 |
||||||
|
158 |
9004520270000 - BAGUE More informationQuantity required : 2 |
||||||
|
158 |
9004520268000 - ANNEAU ELASTIQUE More informationQuantity required : 2 |
||||||
|
158 |
9004520267000 - ANNEAU ELASTIQUE More informationQuantity required : 2 |
||||||
|
158 |
9004520266000 - ANNEAU ELASTIQUE More informationQuantity required : 2 |
||||||
|
158 |
9004520265000 - ANNEAU ELASTIQUE More informationQuantity required : 2 |
||||||
|
158 |
9004520264000 - ANNEAU ELASTIQUE More informationQuantity required : 2 |
||||||
|
158 |
9004520263000 - CIRCLIPS More informationQuantity required : 2 |
||||||
|
159 |
9004520278000 - BAGUE More informationQuantity required : 2 |
||||||
|
159 |
9004520277000 - BAGUE More informationQuantity required : 2 |
||||||
|
159 |
9004520275000 - BAGUE More informationQuantity required : 2 |
||||||
|
159 |
9004520274000 - BAGUE More informationQuantity required : 2 |
||||||
|
159 |
9004520273000 - BAGUE More informationQuantity required : 2 |
||||||
|
159 |
9004520272000 - BAGUE More informationQuantity required : 2 |
||||||
|
159 |
9004520271000 - BAGUE More informationQuantity required : 2 |
||||||
|
161 |
3338087506000 - MOYEU More informationQuantity required : 1 |
||||||
|
161 |
3338087509000 - MOYEU More informationQuantity required : 1 |
||||||
|
163 |
3335687501000 - RESSORT More informationQuantity required : 1 |
||||||
|
164 |
9004254043000 - CLAVETTE More informationQuantity required : 1 |
||||||
|
166 |
9004179244000 - ECROU More informationQuantity required : 1 |
||||||
|
167 |
9004208031000 - RONDELLE More informationQuantity required : 1 |
||||||
|
168 |
9004208031000 - RONDELLE More informationQuantity required : 1 |
