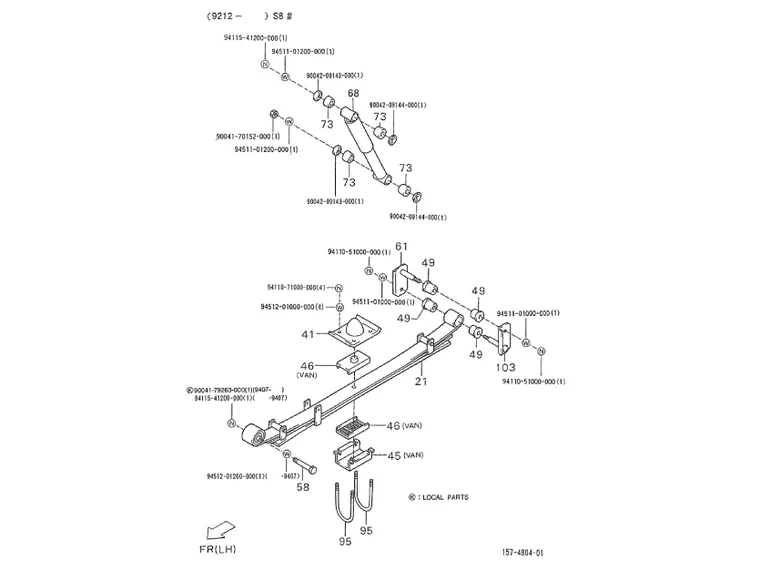

Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter 1000-1300 Pick-Van 1992-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)
Transmission : 03.280 AMORTISSEUR AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_03.280.PNG)
21 |
B005010 - RESSORT More informationQuantity required : 2 |
||||||
|
21 |
LEAF SPRING "PIAGGIO GENUINE PART" PORTER PICK-UP -B005011- More informationQuantity required : 2 |
||||||
|
21 |
4820087Z04000 - RESSORT More informationQuantity required : 2 |
||||||
|
41 |
4834187Z02000 - TAMPON RESSORT ARRIER More informationQuantity required : 2 |
||||||
|
41 |
4834187Z03000 - TAMPON More informationQuantity required : 2 |
||||||
|
45 |
4837187Z02000 - ARRET More informationQuantity required : 2 |
||||||
|
46 |
4837287Z01000 - PANNEAU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/9/1/0/img/112910.jpg)
49 |
RUBBER BUSHING FOR REAR SUSPENSION SRING LEAF "PIAGGIO GENUINE PART" PORTER -261219- More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/5/7/4/img/112574.jpg)
58 |
B007665 - VIS More informationQuantity required : 2 |
||||||
|
61 |
4804187Z01000 - SUPPORT ART. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/7/6/6/3/img/207663.JPG)
68 |
1E002834 - REAR SHOCK ABSORBER More informationQuantity required : 2 |
||||||
|
68 |
1E002834 - REAR SHOCK ABSORBER More informationQuantity required : 2 |
||||||
|
68 |
4853187542000 - AMORTISSEUR AR More informationQuantity required : 2 |
||||||
|
68 |
4853187541000 - AMORTISSEUR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/5/8/4/img/113584.jpg)
73 |
SILENBLOC ON SHOCK ABSORBER "PIAGGIO GENUINE PART" PORTER -B004981- More informationQuantity required : 8 |
||||||
|
95 |
D9004117087T - BOULON More informationQuantity required : 4 |
||||||
|
95 |
9004117081000 - BOULON More informationQuantity required : 4 |
||||||
|
103 |
4840887Z01000 - SUPPORT ART. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/2/8/img/110228.jpg)
105 |
D9451101200 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/3/1/img/110331.jpg)
106 |
D9004209143 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/7/0/3/img/110703.jpg)
108 |
D9004209144 - RONDELLE More informationQuantity required : 1 |
||||||
|
109 |
D9451101200 - RONDELLE More informationQuantity required : 1 |
||||||
|
110 |
D9004209143 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/9/7/img/110197.jpg)
112 |
D9411071000 - ECROU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/7/1/img/110471.jpg)
113 |
9451201000000 - RONDELLE More informationQuantity required : 4 |
||||||
|
114 |
9451101000000 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/0/3/img/110303.jpg)
117 |
D9451201200 - RONDELLE More informationQuantity required : 1 |
