Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter 1000-1300 Pick-Van 1992-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

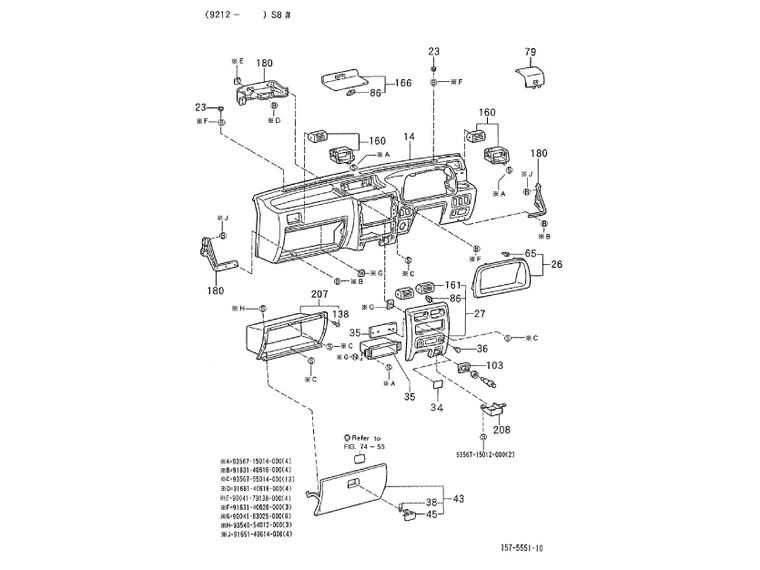

Chassis : 04.070 TABLEAU DE BORD VIDE-POCHES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_04.070.PNG)
14 |
5531187535030 - TABL.DE BORD. More informationQuantity required : 1 |
||||||
|
14 |
5531187Z02030 - TABL.DE BORD. More informationQuantity required : 1 |
||||||
|
23 |
5554887502030 - BOUCHON More informationQuantity required : 2 |
||||||
|
26 |
5540487Z03000 - PANNEAU TABLE More informationQuantity required : 1 |
||||||
|
27 |
5540587Z01000 - PANNEAU CENT. More informationQuantity required : 1 |
||||||
|
35 |
5552287702000 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/0/4/img/111504.jpg)
38 |
5552587Z01000 - RESSORT More informationQuantity required : 1 |
||||||
|
38 |
5552587506000 - RESSORT More informationQuantity required : 1 |
||||||
|
43 |
5550187513030 - ABATTANT More informationQuantity required : 1 |
||||||
|
43 |
5550187Z01030 - ABATTANT More informationQuantity required : 1 |
||||||
|
45 |
5556587503030 - BOUTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/6/9/2/img/112692.jpg)
45 |
GLOVE BOX DOOR KNOB "PIAGGIO GENUINE PART" PORTER -5556587Z01030- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/4/img/73404.jpg)
65 |
CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859- More informationQuantity required : 4 |
||||||
|
79 |
5543187Z02030 - COUVERCLE More informationQuantity required : 1 |
||||||
|
79 |
5543187515030 - COUVERCLE More informationQuantity required : 1 |
||||||
|
86 |
CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859- More informationQuantity required : 5 |
||||||
|
103 |
5547787Z01000 - ENCADREMENT More informationQuantity required : 1 |
||||||
|
138 |
9004541178000 - TAMPON More informationQuantity required : 2 |
||||||
|
160 |
5565087Z02030 - ENTREE D'AIR More informationQuantity required : 2 |
||||||
|
161 |
5506187Z01000 - ENTREE D'AIR More informationQuantity required : 2 |
||||||
|
166 |
5504487501030 - PANNEAU SUP. More informationQuantity required : 1 |
||||||
|
166 |
5504487Z02030 - PANNEAU SUP. More informationQuantity required : 1 |
||||||
|
180 |
5537487Z01000 - SUPPORT More informationQuantity required : 1 |
||||||
|
180 |
5577287Z01000 - SUPPORT More informationQuantity required : 1 |
||||||
|
180 |
5537587Z02000 - SUPPORT More informationQuantity required : 1 |
||||||
|
180 |
5537587Z01000 - SUPPORT More informationQuantity required : 1 |
||||||
|
180 |
5537487Z02000 - SUPPORT More informationQuantity required : 1 |
||||||
|
207 |
5550487Z02000 - PORTE-OBJETS More informationQuantity required : 1 |
||||||
|
208 |
8551387Z01000 - BOUCHON More informationQuantity required : 1 |
||||||
|
209 |
9356715014000 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/8/3/4/img/111834.jpg)
211 |
B004853 - VIS More informationQuantity required : 13 |
||||||
|
212 |
CM288916 - VIS More informationQuantity required : 4 |
||||||
|
215 |
9004183025000 - ECROU More informationQuantity required : 6 |
||||||
|
216 |
9354054012000 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/9/8/img/151198.jpg)
217 |
CM287314 - BOULON More informationQuantity required : 4 |
||||||
|
218 |
9356715012000 - VIS More informationQuantity required : 2 |
