Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter 1000-1300 Pick-Van 1992-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

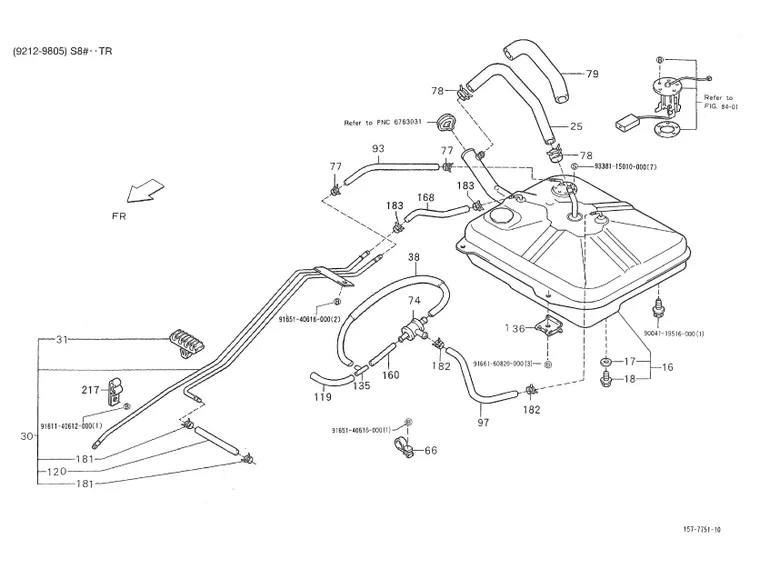

Chassis : 04.440 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_04.440.PNG)
16 |
7700187Z17000 - SERB.CARBURANT More informationQuantity required : 1 |
|||||||||
|
16 |
7700187Z07000 - RESERVOIRE 7700187Z10000 More informationQuantity required : 1 |
|||||||||
|
17 |
D9004430120 - JOINT BOUCHON More informationQuantity required : 1 |
|||||||||
|
18 |
9004341011000 - BOUCHON More informationQuantity required : 1 |
|||||||||
|
23 |
7720187Z06000 - RACCORD More informationQuantity required : 1 |
|||||||||
|
24 |
B005022 - TUYAU More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/9/7/8/img/134978.JPG)
28 |
FUEL HOSE "PIAGGIO GENUINE PARTS" PORTER -1E001427- More informationQuantity required : 1 |
|||||||||
|
29 |
9004460117000 - COLLIER More informationQuantity required : 2 |
|||||||||
|
30 |
D7720587Z13 - TUYAU More informationQuantity required : 1 |
|||||||||
|
30 |
7720587Z06000 - TUBE ESSENCE More informationQuantity required : 1 |
|||||||||
|
31 |
D9004464157 - COLLIER More informationQuantity required : 1 |
|||||||||
|
33 |
7720587Z07000 - TUBE ESSENCE More informationQuantity required : 1 |
|||||||||
|
38 |
7725987Z02000 - TUYAU More informationQuantity required : 1 |
|||||||||
|
45 |
7725587Z11000 - TUYAU More informationQuantity required : 1 |
|||||||||
|
47 |
7729487Z01000 - PLAQUE More informationQuantity required : 1 |
|||||||||
|
69 |
7770487514000 - BOITE More informationQuantity required : 1 |
|||||||||
|
74 |
7770987504000 - SOUPAPE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/4/0/2/img/121402.JPG)
74 |
FUEL FILTER "PIAGGIO GENUINE PART" PORTER 1992>2009 -7770987511000- More informationQuantity required : 1 |
|||||||||
|
74 |
7770987507000 - FILTRE CARB. More informationQuantity required : 1 |
|||||||||
|
78 |
D9004467305 - CLIP More informationQuantity required : 2 |
|||||||||
|
78 |
D9004467305 - CLIP More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/9/6/1/img/112961.jpg)
78 |
9004467228000 - COLLIER More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/2/0/8/img/111208.JPG)
79 |
9004446371000 - More informationQuantity required : 1 |
|||||||||
|
86 |
9004448619000 - TUBE More informationQuantity required : 1 |
|||||||||
|
93 |
9004864283000 - More informationQuantity required : 1 |
|||||||||
|
93 |
9004448610000 - TUBE More informationQuantity required : 1 |
|||||||||
|
97 |
9004444017000 - TUBE More informationQuantity required : 0 |
|||||||||
|
116 |
7725187Z03000 - TUBE ESSENCE More informationQuantity required : 1 |
|||||||||
|
119 |
9004446458000 - TUBE More informationQuantity required : 1 |
|||||||||
|
119 |
9004446455000 - TUYAU More informationQuantity required : 1 |
|||||||||
|
131 |
9004448620000 - TUBE More informationQuantity required : 1 |
|||||||||
|
136 |
7714187Z01000 - PROTECTION More informationQuantity required : 1 |
|||||||||
|
136 |
D7714187Z04 - PROTECTION More informationQuantity required : 1 |
|||||||||
|
137 |
9004467228000 - COLLIER More informationQuantity required : 2 |
|||||||||
|
177 |
7725987504000 - TUYAU More informationQuantity required : 1 |
|||||||||
|
181 |
9613230600000 - COLLIER More informationQuantity required : 2 |
|||||||||
|
182 |
9004467228000 - COLLIER More informationQuantity required : 2 |
|||||||||
|
183 |
9613541100000 - COLLIER More informationQuantity required : 2 |
|||||||||
|
214 |
6252687101000 - CAPUCHON More informationQuantity required : 1 |
|||||||||
|
215 |
9004461229000 - COLLIER More informationQuantity required : 1 |
|||||||||
|
218 |
9165140616000 - BOULON More informationQuantity required : 5 |
|||||||||
|
219 |
9165140616000 - BOULON More informationQuantity required : 3 |
|||||||||
|
220 |
B005028 - BOULON More informationQuantity required : 1 |
|||||||||
|
220 |
D9165160820 - BOULON More informationQuantity required : 3 |
|||||||||
|
220 |
9004412033000 - RACCORD More informationQuantity required : 1 |
|||||||||
|
221 |
B005028 - BOULON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/8/5/5/img/114855.JPG)
235 |
7710887Z01000 - SOUPAPE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/2/3/img/110223.JPG)
237 |
D9165140612 - BOULON More informationQuantity required : 4 |
|||||||||
|
238 |
9165140616000 - BOULON More informationQuantity required : 2 |
|||||||||
|
239 |
B005028 - BOULON More informationQuantity required : 4 |
|||||||||
|
248 |
D9622130705 - COLLIER More informationQuantity required : 2 |
|||||||||
|
253 |
9165140616000 - BOULON More informationQuantity required : 6 |
|||||||||
|
255 |
B005028 - BOULON More informationQuantity required : 1 |
|||||||||
|
256 |
D9165140612 - BOULON More informationQuantity required : 1 |
|||||||||
