Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter 1000-1300 Pick-Van 1992-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

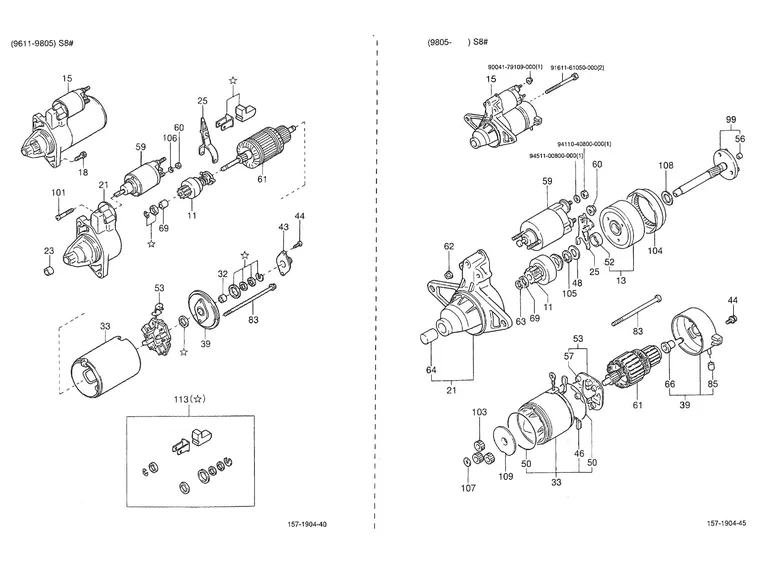

Moteur : 01.262 MOTEUR DU DÉMARREUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_01.262.PNG)
11 |
2801187101000 - LANCEUR DEMARREUR More informationQuantity required : 1 |
||||||
|
13 |
2812687201000 - COUVERCLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/9/4/1/img/123941.jpg)
15 |
ELECTRIC STARTER "PIAGGIO GENUINE PART" PORTER 1998>2000 1300 CC -2810087551000- More informationQuantity required : 2 |
||||||
|
21 |
2811087530000 - ENS MOTEUR DEMARREUR More informationQuantity required : 2 |
||||||
|
25 |
2811387204000 - LEVIER More informationQuantity required : 1 |
||||||
|
25 |
2811387Z02000 - LEVIER More informationQuantity required : 2 |
||||||
|
32 |
2811987Z01000 - BAGUE More informationQuantity required : 2 |
||||||
|
33 |
2812087211000 - STARTER DEMARREUR HC More informationQuantity required : 1 |
||||||
|
44 |
2817687701000 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/6/3/8/img/117638.JPG)
46 |
2814287204000 - KIT MOTEUR DEMARREUR More informationQuantity required : 2 |
||||||
|
53 |
ELECTRIC STARTER BRUSH HOLDER "PIAGGIO GENUINE PART" PORTER 1998>2000 1300 CC -2814087202000- More informationQuantity required : 2 |
||||||
|
53 |
2814987Z02000 - PORTE BROSSE More informationQuantity required : 2 |
||||||
|
56 |
2825287201000 - JOINT More informationQuantity required : 1 |
||||||
|
59 |
2815087208000 - GR INTERRUPTEUR More informationQuantity required : 4 |
||||||
|
60 |
2827387502000 - ECROU More informationQuantity required : 1 |
||||||
|
61 |
2816087Z02000 - INDUIT More informationQuantity required : 1 |
||||||
|
62 |
2827387501000 - ECROU More informationQuantity required : 2 |
||||||
|
63 |
2827487503000 - RONDELLE More informationQuantity required : 1 |
||||||
|
64 |
2825287203000 - DOUILLE More informationQuantity required : 2 |
||||||
|
66 |
9009910183000 - ROULEMENT More informationQuantity required : 1 |
||||||
|
69 |
2816387702000 - ECROU More informationQuantity required : 2 |
||||||
|
83 |
2827287801000 - BOULON More informationQuantity required : 2 |
||||||
|
85 |
2819987202000 - PROTECTION More informationQuantity required : 2 |
||||||
|
99 |
2820987201000 - AXE More informationQuantity required : 2 |
||||||
|
103 |
2818587201000 - ROULEMENT More informationQuantity required : 1 |
||||||
|
104 |
2818487201000 - ENGRENAGE More informationQuantity required : 2 |
||||||
|
107 |
2827587201000 - RONDELLE More informationQuantity required : 3 |
||||||
|
108 |
2827587202000 - RONELLE More informationQuantity required : 2 |
||||||
|
109 |
2811887201000 - PLAQUE More informationQuantity required : 1 |
||||||
|
113 |
2822687Z01000 - JEU RONDELLE More informationQuantity required : 2 |
||||||
|
113 |
D9451100800 - RONDELLE More informationQuantity required : 1 |
||||||
|
114 |
D9004179109 - ECROU More informationQuantity required : 2 |
||||||
|
116 |
D9411040800 - ECROU More informationQuantity required : 1 |
||||||
|
117 |
D9451100800 - RONDELLE More informationQuantity required : 1 |
