Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter 1000-1300 Pick-Van 1992-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

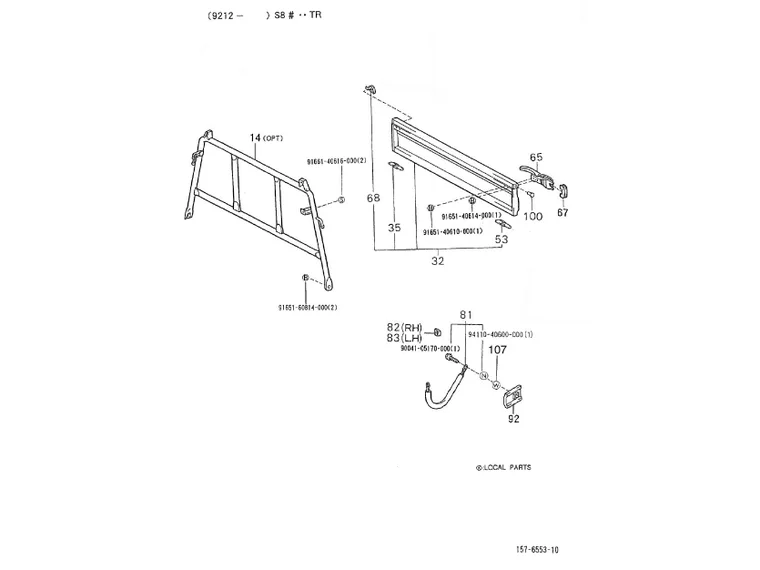

Chassis : 04.220 GARDE ET LE HAYON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_04.220.PNG)
14 |
6541087Z01000 - PROTECTION More informationQuantity required : 1 |
||||||
|
32 |
REAR DROP SIDE "PIAGGIO GENUINE PART" PORTER PICK-UP 1992>2009 -6570187Z03000- More informationQuantity required : 1 |
||||||
|
32 |
6570187Z01000 - ABATTANT More informationQuantity required : 1 |
||||||
|
35 |
6507387Z01000 - CHARNIERE More informationQuantity required : 2 |
||||||
|
53 |
6507487Z01000 - CHARNIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/7/7/6/img/116776.jpg)
65 |
6620187Z01000 - SERRURE More informationQuantity required : 2 |
||||||
|
67 |
6614787Z01000 - PANNEAU INS. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/2/9/9/img/113299.jpg)
68 |
6631187Z01000 - CROCHET More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/9/8/3/img/114983.jpg)
81 |
6628087Z01000 - CHAINE POMPE More informationQuantity required : 2 |
||||||
|
82 |
6628787Z01000 - SUPPORT More informationQuantity required : 1 |
||||||
|
83 |
6628887Z01000 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/1/2/7/img/112127.jpg)
92 |
6628987Z01000 - SUPPORT More informationQuantity required : 2 |
||||||
|
100 |
9004871154000 - BOUCHON More informationQuantity required : 2 |
||||||
|
101 |
CM288916 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/9/8/img/151198.jpg)
103 |
CM287314 - BOULON More informationQuantity required : 1 |
||||||
|
104 |
9165140610000 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/1/4/img/111914.jpg)
106 |
9004105170000 - BOULON More informationQuantity required : 1 |
||||||
|
107 |
D9461410600 - RONDELLE More informationQuantity required : 1 |
