Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter 1000-1300 Pick-Van 1992-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

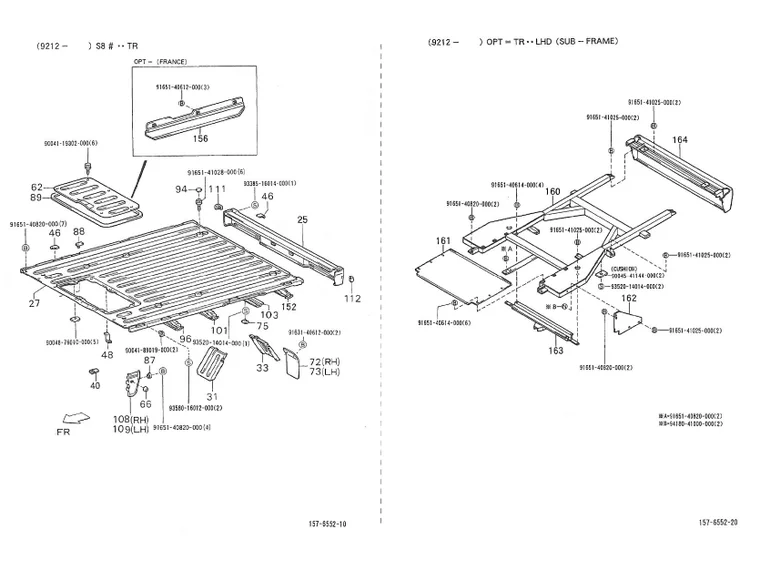

Chassis : 04.210 PLANCHER ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_04.210.PNG)
25 |
493717 - TRAVERSE More informationQuantity required : 1 |
|||||||||
|
27 |
6531187Z01000 - PANNEAU More informationQuantity required : 1 |
|||||||||
|
27 |
D6531187Z035 - PANNEAU More informationQuantity required : 1 |
|||||||||
|
31 |
6531787Z01000 - PANNEAU GARDEBOUE ARR.GAU. More informationQuantity required : 1 |
|||||||||
|
31 |
6531887Z01000 - PANNEAU GARDEBOUE ARR.DRT. More informationQuantity required : 1 |
|||||||||
|
33 |
6530687Z01000 - PANNEAU More informationQuantity required : 1 |
|||||||||
|
33 |
6530587Z01000 - PANNEAU More informationQuantity required : 1 |
|||||||||
|
46 |
6611287Z01000 - CHARNIERE More informationQuantity required : 1 |
|||||||||
|
48 |
5826687Z01000 - SUPPORT More informationQuantity required : 1 |
|||||||||
|
62 |
6640187Z01000 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
66 |
6632187Z01000 - TAMPON More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/0/6/2/img/114062.jpg)
72 |
MUD FLAP - REAR "PIAGGIO GENUINE PART" PORTER -B007640- More informationQuantity required : 2 |
|||||||||
|
73 |
MUD FLAP - REAR "PIAGGIO GENUINE PART" PORTER -B007640- More informationQuantity required : 1 |
|||||||||
|
75 |
9004541144000 - TAMPON More informationQuantity required : 2 |
|||||||||
|
87 |
D6644387Z01 - JOINT More informationQuantity required : 4 |
|||||||||
|
88 |
6631387Z01000 - CROCHET More informationQuantity required : 6 |
|||||||||
|
89 |
5516687Z02000 - JOINT More informationQuantity required : 1 |
|||||||||
|
94 |
B004631 - BOUCHON More informationQuantity required : 8 |
|||||||||
|
96 |
6510287Z03000 - TRAVERSE More informationQuantity required : 1 |
|||||||||
|
101 |
6510487Z02000 - TRAVERSE More informationQuantity required : 1 |
|||||||||
|
103 |
6510587Z01000 - TRAVERSE More informationQuantity required : 1 |
|||||||||
|
108 |
6531387Z01000 - PANNEAU More informationQuantity required : 1 |
|||||||||
|
109 |
6531487Z01000 - PANNEAU More informationQuantity required : 1 |
|||||||||
|
111 |
6633187Z01000 - TAMPON More informationQuantity required : 1 |
|||||||||
|
112 |
6633287Z01000 - TAMPON More informationQuantity required : 1 |
|||||||||
|
152 |
6510687Z02000 - TRAVERSE More informationQuantity required : 1 |
|||||||||
|
156 |
6533787Z02000 - PLAQUE D.1300 More informationQuantity required : 1 |
|||||||||
|
156 |
6533887Z01000 - PLAQUE S.1300 More informationQuantity required : 1 |
|||||||||
|
160 |
5100587Z03000 - FRAME SUB-ASSY More informationQuantity required : 1 |
|||||||||
|
162 |
5121387Z01000 - PLAQUE More informationQuantity required : 2 |
|||||||||
|
163 |
6510287Z04000 - TRAVERSE More informationQuantity required : 1 |
|||||||||
|
164 |
B0040484 - PARE CHOC ARR. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/2/3/img/110223.JPG)
165 |
D9165140612 - BOULON More informationQuantity required : 3 |
|||||||||
|
166 |
9004119302000 - BOULON More informationQuantity required : 6 |
|||||||||
|
168 |
9338516014000 - VIS More informationQuantity required : 1 |
|||||||||
|
170 |
9004876010000 - ECROU More informationQuantity required : 5 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/6/9/img/110269.jpg)
171 |
D9004189019 - PASSE-CABLE More informationQuantity required : 2 |
|||||||||
|
172 |
9352014014000 - VIS More informationQuantity required : 1 |
|||||||||
|
173 |
9163140612000 - BOULON More informationQuantity required : 2 |
|||||||||
|
175 |
9165141025000 - BOULON More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/9/8/img/151198.jpg)
176 |
CM287314 - BOULON More informationQuantity required : 4 |
|||||||||
|
177 |
9004541144000 - TAMPON More informationQuantity required : 2 |
|||||||||
|
178 |
9165141025000 - BOULON More informationQuantity required : 2 |
|||||||||
|
180 |
9165141025000 - BOULON More informationQuantity required : 2 |
|||||||||
|
181 |
9418041000000 - ECROU More informationQuantity required : 2 |
|||||||||
