Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter 1000-1300 Pick-Van 1992-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

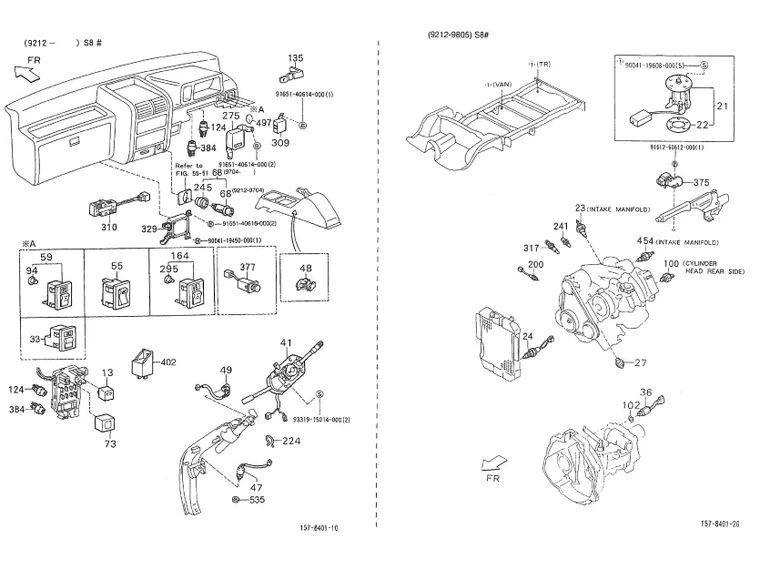

Circuit electrique : 05.120 INTERRUPTEUR - RELAIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_05.120.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/3/7/8/img/118378.jpg)
13 |
FLASHER UNIT "PIAGGIO GENUINE PART" PIAGGIO PORTER 1992>2009 -D8198087Z02- More informationQuantity required : 1 |
||||||
21 |
8332087513000 - IND.NIVEAU More informationQuantity required : 1 |
||||||
|
21 |
8332087514000 - IND.NIVEAU More informationQuantity required : 1 |
||||||
|
22 |
8336187201000 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/8/3/8/img/119838.jpg)
24 |
RADIATOR SENSOR - 1400 GREEN WITH 3 PLUGS Ø 20 "PIAGGIO GENUINE PART" PORTER 1992>2009 -8343087Z03000- More informationQuantity required : 1 |
||||||
|
24 |
8343087Z02000 - SENSOR TEMPERATURA RAD. More informationQuantity required : 1 |
||||||
|
36 |
8421087508000 - INTERRUPTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/0/8/3/img/121083.jpg)
36 |
REVERSING LIGHT SWITCH "PIAGGIO GENUINE PART" PORTER 1992>2009, CARGO 1998>2005 -8421097501000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/4/6/1/img/123461.JPG)
41 |
8431087D29000 - GR.DEVIATORI RHD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/9/8/8/img/122988.jpg)
41 |
MAIN SWITCH FOR LEFT HAND DRIVE PORTER "PIAGGIO GENUINE PART" -D8431087D28- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/8/8/9/img/115889.jpg)
47 |
STOP SWITCH "PIAGGIO GENUINE PART" APE, PORTER, CARGO, HEXAGONE, X9 ANCIENNE GENERATION -B023289- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/2/1/4/img/118214.jpg)
48 |
PARKING BRAKE SWITCH "PIAGGIO GENUINE PART" PORTER, CARGO -8438087206000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/7/2/4/img/121724.jpg)
49 |
CABLE BUNDLE FOR IGNITION SWITCH "PIAGGIO GENUINE PART" PIAGGIO PORTER DU 01/12/1992 AU 01/10/1993 (ENGINE : CB41 1000CC) -8445087521000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/3/4/4/img/121344.jpg)
49 |
CABLE BUNDLE FOR IGNITION SWITCH "PIAGGIO GENUINE PART" PORTER -8445087527000- More informationQuantity required : 0 |
||||||
|
55 |
8465087Z01000 - INTERRUPTEUR More informationQuantity required : 1 |
||||||
|
59 |
8479087Z01000 - INTERRUPTEUR LUNETTE AR More informationQuantity required : 1 |
||||||
|
68 |
8550087Z03000 - BRIQUET More informationQuantity required : 1 |
||||||
|
73 |
WIPER RELAY "PIAGGIO GENUINE PART" PORTER 1992>2010 -D8594087Z02- More informationQuantity required : 1 |
||||||
|
94 |
9004951058000 - AMPOULE More informationQuantity required : 1 |
||||||
|
100 |
8344087713000 - INTERRUPTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/3/3/7/img/119337.JPG)
124 |
FUEL PUMP RELAY "PIAGGIO GENUINE PART" PORTER -9004987009000- More informationQuantity required : 1 |
||||||
|
164 |
8417087Z01000 - INTERRUPTEUR More informationQuantity required : 1 |
||||||
|
200 |
8946587706000 - SENSOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/5/7/7/img/122577.jpg)
241 |
TEMPERATURE PROBE "PIAGGIO GENUINE PART" PORTER 1992>2009 -8942287101000- More informationQuantity required : 1 |
||||||
|
245 |
8553387Z03000 - TRASPARENT More informationQuantity required : 1 |
||||||
|
275 |
2838087506000 - RELAIS POMPE More informationQuantity required : 1 |
||||||
|
295 |
9004951058000 - AMPOULE More informationQuantity required : 1 |
||||||
|
317 |
8942487703000 - SONDE More informationQuantity required : 1 |
||||||
|
329 |
8956087528000 - RELAIS CARBURANT More informationQuantity required : 1 |
||||||
|
375 |
8942087503000 - SENSOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/5/9/5/img/116595.jpg)
377 |
8412087Z01000 - INTERUPTEUR REGLAGEPHARE More informationQuantity required : 1 |
||||||
|
377 |
8412087501000 - INTERRUPTEUR More informationQuantity required : 1 |
||||||
|
384 |
FUEL PUMP RELAY "PIAGGIO GENUINE PART" PORTER -9004987009000- More informationQuantity required : 2 |
||||||
|
454 |
8344087714000 - INTERRUPTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/0/9/img/110209.JPG)
497 |
D9004874004 - BOUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/4/img/65824.jpg)
535 |
196750 - ECROU CONTACT STOP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/9/8/img/151198.jpg)
614 |
CM287314 - BOULON More informationQuantity required : 3 |
||||||
|
615 |
9165140616000 - BOULON More informationQuantity required : 2 |
