Vehicle Exploded View - APRILIA ETX 125 1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

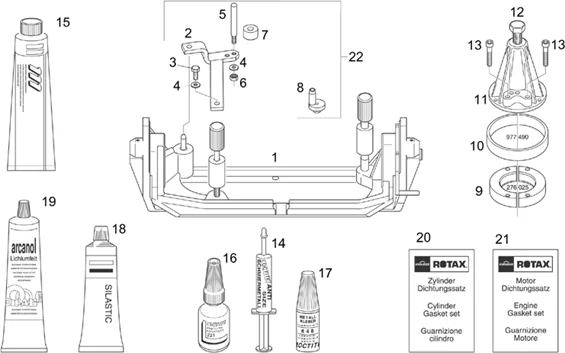

Outillage special : 31.39 OUTILS RÉPARATION II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/693/ETX_125_1998_31.39.PNG)
1 |
AP0277917 - OUTIL SUPPORT MOT.CPL; More informationQuantity required : 1 |
||||||
|
3 |
AP0940590 - VIS More informationQuantity required : 1 |
||||||
|
4 |
AP0250311 - RONDELLE More informationQuantity required : 2 |
||||||
|
6 |
AP0242209 - ECROU More informationQuantity required : 1 |
||||||
|
9 |
AP0276025 - DEMI-CLAVETTES More informationQuantity required : 2 |
||||||
|
11 |
AP0876298 - EXTRACTEUR COMPLET More informationQuantity required : 1 |
||||||
|
12 |
AP0940755 - VIS More informationQuantity required : 1 |
||||||
|
13 |
AP0840681 - VIS More informationQuantity required : 4 |
||||||
|
14 |
AP0297434 - LOCTITE ANTI SEIZE More informationQuantity required : 1 |
||||||
|
15 |
AP0897161 - MOLYKOTE More informationQuantity required : 1 |
||||||
|
16 |
AP0899785 - LOCTITE VIOLET More informationQuantity required : 1 |
||||||
|
17 |
AP0899788 - LOCTITE VERTE More informationQuantity required : 1 |
||||||
|
18 |
AP0297386 - SILASTIC 732 RTV More informationQuantity required : 1 |
||||||
|
19 |
AP0897330 - GRAISSE LITHIUM More informationQuantity required : 1 |
||||||
|
20 |
AP0293318 - JOINTS CYLINDRE-SERIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/1/5/2/img/44152.jpg)
21 |
GASKET KIT FOR ENGINE "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, CLASSIC, SX, RX, MX -AP0293314- More informationQuantity required : 1 |
